PRODUCT

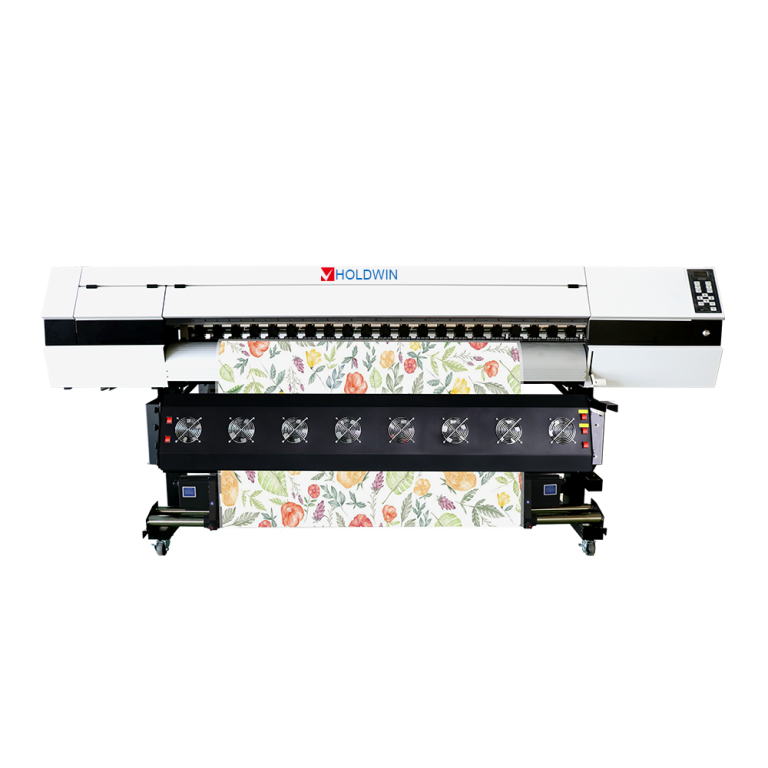

HOLDWIN-1803TX

Head: 2*I3200-A1 Print Heads
Speed: 2pass(360*1800dpi): 80sqm/h; 3pass(720*720dpi): 60sqm/h
Printing Technology: Piezoelectric Inkjet
Printing Width: ≤ 1820 mm

Chat Now

PRODUCT DETAILS

Technical Characteristics

It adopts advanced board control technology and is equipped with 4 i3200 print heads, each head has 3200 heads, 3.5pl ink droplets, and the printing accuracy can reach 3600dpi. The industrial-grade design ensures the durability of the print head.

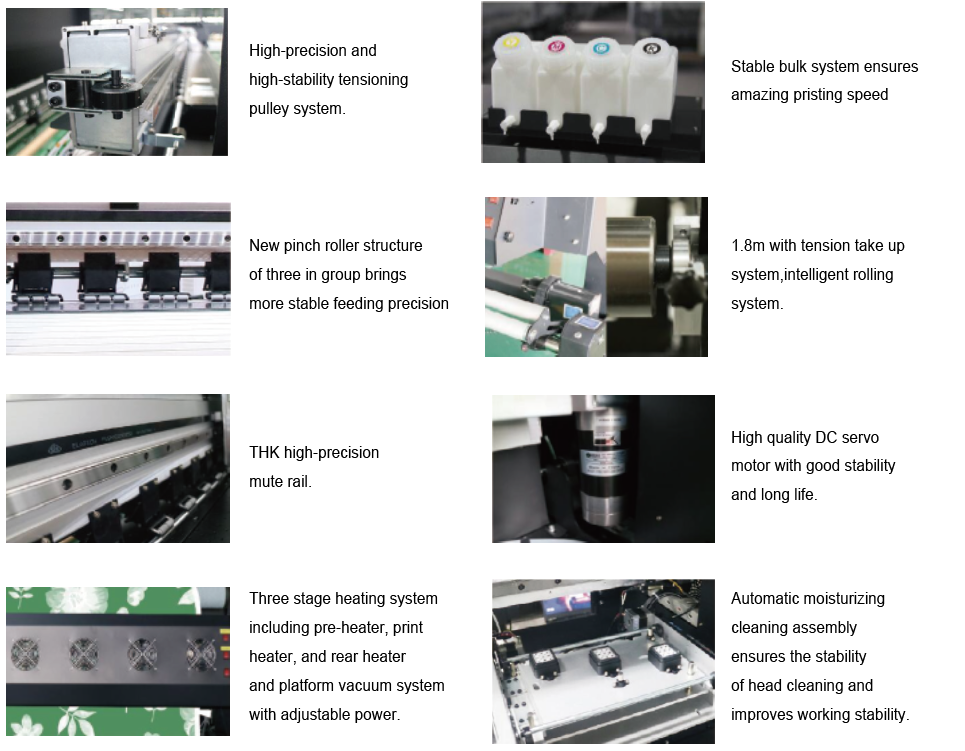

High-quality THK silent guide rail, upgraded motor, the car runs more smoothly;
Warm air structure and silent suction fan to reduce noise;
Equipped with a constant temperature heating system, the head is not affected by the ambient temperature during the printing process;
Use multi-point adaptive pressure wheels, accurate pressure control, smooth paper walking, and achieve continuous and stable printing.

Applications

Both the sublimation and direct-to-textile printers are examples of our expertise and engineering: top performance, reliable and precise. With HOLDWIN series printer, you can maximize production while controlling quality and minimizing costs for beautiful soft signage, apparel and interior decor items that will set your business apart from the competition . Wide applications in clothing, home decoration fabrics, sampling, shirt, canvas bags, bolster, scooter, flags, textile gadgets etc.

Technical Parameters

Technical Specifications
Model	HOLDWIN-1802
Print Head	2 i3200-A1 Print Heads
Speed	2pass(360x1800dpi)	80sqm/h
	3pass(720x720dpi)	60sqm/h
Printing Technology	Piezoelectric Inkjet
Printing Width	≤1820mm
Printing Weight	100 kg
Ink size	3.5pl
Print resolution	2400dpi
Interface	LAN
RIP Software	Riprint
Support image	JPG / TIFF / PDF, etc
Machine Size / Weight	3311x740x1571mm / 350 kg
Power	Input Voltage	AC220V±5%，60/50HZ±1
	Drying system	Maximum：7.5kw
Package Size / Weight	3213x1150x1800 mm / 400 kg
Standard Components	USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc.
Working Environment	Power on	Temperature: 35F to 80F [15C to 32C] / Humidity: 35 to 80% (no condensation)
	Power off	Temperature:41 F to 104 F [5C to 40C] / Humidity: 20 to 80% (no condensation)

Q&A

Q: What is the model of this printer?
A: The model of this printer is HOLDWIN-1802TX.

Q: How many print heads does it have?
A: It has two i3200-A1 Print Heads.

Q: What is the printing speed of this printer?
A: The printing speed of this printer is 80 sqm/h in 2pass (360x1800dpi) and 60 sqm/h in 3pass (720x720dpi).

Q: What is the printing technology used by this printer?
A: The printing technology used by this printer is Piezoelectric Inkjet.

Q: What is the maximum printing width supported by this printer?
A: The maximum printing width supported by this printer is less than 1820 mm.

Q: What is the weight limit for printing on this printer?
A: The printing weight limit for this printer is 100 kg.

Q: What size ink cartridges can be used with this printer?
A: This printer uses 3.5 pl ink cartridges.

Q: What resolution does this printer support?
A: This printer supports a print resolution of up to 2400 dpi.

Q: Which interface does this printer use?
A: This printer uses LAN as its interface.

Q: What software is included with this printer?
A: This printer comes with Riprint RIP Software.

Q: What image formats are supported by this printer?
A: This printer supports JPG, TIFF, PDF, etc. image formats.

Q: What are the dimensions of this printer?
A: The dimensions of this printer are 3311x740x1571 mm.

Q: What is the weight of this printer?
A: The weight of this printer is 350 kg.

Q: What is the power consumption of this printer when it’s turned on?
A: The maximum power consumption of this printer when it’s turned on is 7.5kw.

Q: What voltage input is required for this printer?
A: This printer requires an AC220V±5%, 60/50HZ±1 voltage input.

Q: Does this printer come with any standard components?
A: Yes, this printer comes with USB cable, media clamp, manual, drain bottle, ink cartridges, and RIP software as standard components.

Q: What is the recommended working environment for this printer?
A: The recommended working environment for this printer is Temperature:5F to 80F [15C to 22C] / Humidity: 35 to 80% (no condensation) when it’s turned on and Temperature:41 F to 104 F [5C to 40C] / Humidity: 20 to 80% (no condensation) when it’s turned off.
