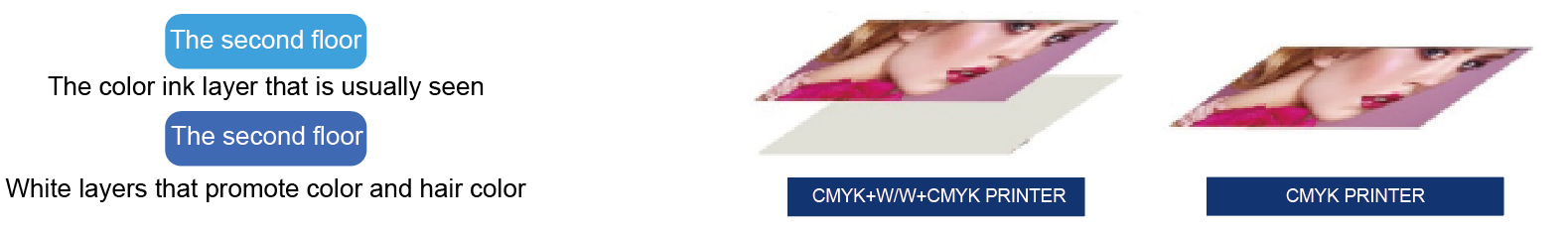

2-layer printing layering technology for color transformation

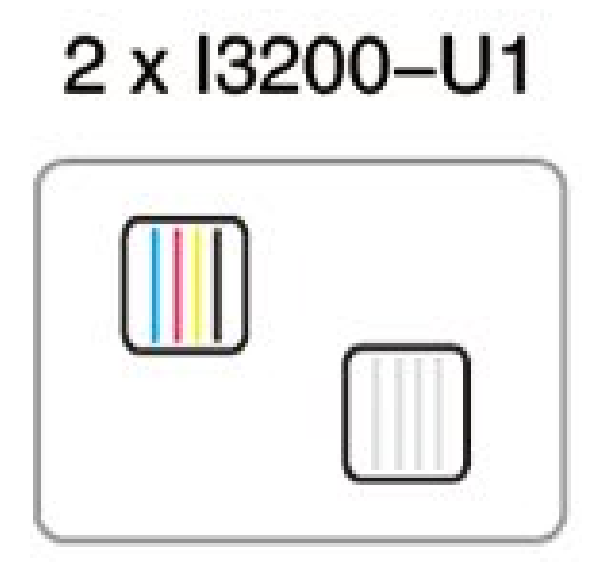

2 x I3200-U1 printing heads adopts advanced board control technology, and the industrial -level design ensures the durability of the printing head. Intelligent inkjet printing technology and variable ink droplets ensure high-quality printing output, greatly improve printing speed, and meet users’ requirements for printing quality and speed.
The matching application scheme of HOLDWIN-1602/1802E UV different color modes meets the needs of different customers and can replace some high-end weak solvent machine markets. The three printing modes of full color, color white and white color meet the printing and production of two-layer or single-layer materials. It is green and environmentally friendly, and the overall effects is very natural！
Cost-effective machine performance parameters
Widely used: light box posters, car stickers, background wall cloth, gold and silver paper printing, leather printing, gift boxes, food packaging, labels, etc.
| Model | HOLDWIN-1602E UV | HOLDWIN-1802E UV | |
| head printer | 2xi3200-U1 | ||
| colors | W+CMYK/2xCMYK | ||
| Printing technology | Piezoelectric inkjet printing | ||
| Medium size | Broad width | 1620 mm | 1820 mm |
| Thickness | 1 mm | ||
| Weight | 60 kg | ||
| Print wide width | 1600 mm | 1800 mm | |
| Ink cartridge | Kind | UV | |
| Capacity | 220cc secondary ink cartridge+1.5L large ink bottle | ||
| Printing resolution | 2400 dpi | ||
| Port | LAN | ||
| Voltage | AC 220V±10%,50/60 HZ | ||
| RIP | RIIN/Photoprint | ||
| Machine size /weight | 2585x685x1482 mm/250kg | 2800x700x1500 mm/280kg | |
| Package size /weight | 2700*760*760mm+450*390*350mm/280kg | 2920*760*760mm+450*390*350mm /310kg | |
| Environment | Power-on mode | Temperature:15℃-32℃/Moisture content:35-80%(No condensation) | |
| Turn off mode | Temperature:5℃-40℃/Moisture content:20-80%(No condensation) | ||
| Attachment | Bracket,LED lamp,discharger,large ink supply system,etc. | ||
Q&A
Q: What are the models of the printers being discussed?
A: The models being discussed are the HOLDWIN-1602E UV and HOLDWIN-1802E UV printers.
Q: What type of print head do these printers use?
A: Both printers use the 2i3200-U1 print head.
Q: What color schemes are available for printing?
A: The HOLDWIN-1602E UV offers W+CMYK colors, while the HOLDWIN-1802E UV offers 2xCMYK colors.
Q: What printing technology do these printers employ?
A: Both printers use Piezoelectric inkjet printing technology.
Q: What is the maximum media width supported by each model?
A: The HOLDWIN-1602E UV supports media up to 1620 mm wide, while the HOLDWIN-1802E UV supports media up to 1820 mm wide.
Q: What is the maximum thickness of media that these printers can handle?
A: Both printers can handle media up to 1 mm thick.
Q: What is the weight of each printer?
A: The HOLDWIN-1602E UV weighs 60 kg, while the HOLDWIN-1802E UV weighs 60 kg as well.
Q: What is the print width for each model?
A: The HOLDWIN-1602E UV has a print width of 1600 mm, and the HOLDWIN-1802E UV has a print width of 1800 mm.
Q: What type of ink is used by these printers?
A: Both printers use UV ink.
Q: What is the capacity of the ink cartridge?
A: The ink cartridge capacity is 220cc secondary ink cartridge + 1.5L large ink bottle.
Q: What is the printing resolution for these printers?
A: The printing resolution is 2400 dpi.
Q: What interface do these printers support?
A: Both printers support LAN connectivity.
Q: What is the voltage requirement for these printers?
A: Both printers require AC 220V±10%, 50/60 HZ.
Q: Which RIP software is compatible with these printers?
A: Both models are compatible with RIIN/Photoprint RIP software.
Q: What are the dimensions and weight of the machines?
A: The HOLDWIN-1602E UV measures 2585x685x1482mm and weighs 250kg, while the HOLDWIN-1802E UV measures 2800x700x1500mm and weighs 280kg.
Q: What are the dimensions and weight of the packaging for each model?
A: The HOLDWIN-1602E UV’s packaging measures 2700x760x760mm and weighs 280kg, while the HOLDWIN-1802E UV’s packaging measures 2920x760x760mm and weighs 310kg.
Q: What are the environmental requirements during operation and shutdown?
A: During operation, the required environment is a temperature range of 15℃-32℃ and moisture content of 35-80% (no condensation). During shutdown, the environment should be within a temperature range of 5℃-40℃ and moisture content of 20-80% (no condensation).
Q: What accessories come with these printers?
A: Accessories included are a bracket, LED lamp, discharger, large ink supply system, and more.
Zhiyu is passionate about good products, good services, and good prices to let consumers know that choosing us is the right choice! For partners and end customers, we will provide one-on-one considerate smart services and provide you with more high-quality procurement solutions.
