PRODUCT

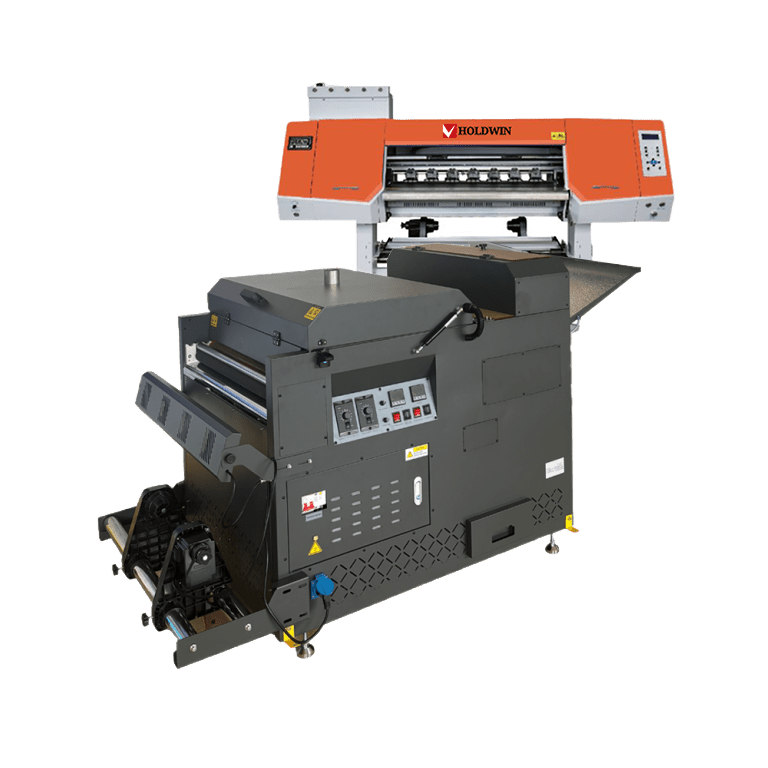

HOLDWIN-602i+DTF700

Print Head: 2*Epson i3200 print heads.
Max Print Size: 600 Print Width.
Print Speed: 14㎡/h- 4pass printing
Colors: CMYK + W

PRODUCT DETAILS

Features

What’s the DTF Printing Technology?

DTF printing is a new printing technology that acts as an alternative to direct to garment (DTG) printing. the major and only difference is that DTG is ued to print natural-fiber fabrics only.DTF on the other hand,has a much more versatile fabric option,and can print on apparel such as silk, polyester,mylon, and even cotton. This versatility of DTF is why it is quicky growing to become a popular printing option in the industry.

Preparation of DTF before printing

1. DTF printed film
The transfer film used by the DTF printer is different from the one used by a screen printer. The DTF transfer film is 0.75 mm thick, has better transfer function, and is more suitable for handling a variety of unique clothing types. These films are often called direct films or DTF transfer films.
They can be used in single pages for small-scale users and rolls for large commercial enterprises. DTF transfer film can be hot or cold stripped according to temperature. You can choose our smooth or matte DTF transfer film according to different needs, perfect for design professionals who need high quality, durable, large format color printing.

2. Use directly for film printer ink
The DTF printer uses unique ink and is designed in white, yellow, cyan, magenta, black and fluorescent colors. However, white ink lays the foundation for your print, while the rest of the paint prints your design on a PET film.

3. Hot melt powder
DTF powder is a hot melt powder made of polyurethane resin and not made into adhesive powder. It completely covers the transfer film print before the suppression process begins. The DTF powder helps to successfully transfer the bright colors, graphics or images from the DTF transfer film to the fabric when not heated.
DTF powder or DTF pretreatment powder with untreated and pretreated sheets eliminated the need for pretreatment. This is the norm in most printing techniques (such as direct clothing (DTG) printing). Preprocessing usually results in unpredictable staining, which negatively affects the quality of the final result. Thus, DTF powder is a game changer in the printing industry. They help to address the challenges associated with other printing technologies.
According to the texture, DTF powder can be divided into fine powder, medium powder and coarse powder. It can be divided into white powder and black powder according to the color. They are applicable to different printing cases, and provide different printing effects.

4.Automatic powder shake bed
This DTF printing function is usually used by large clothing printing companies. DTF powder vibrating sieve machines play a vital role in ensuring a high quality final product. This is the case because it applies the powder evenly
Finally, the excess powder was also removed.
Therefore, the powder machine ensures that your design does not have extra spots.

5. Hot press
Thermal press is used to paste vinyl or various different transfer materials. It transfers the printed images from the PET film onto the desired fabric.
We provide different thermal pressure solutions according to your needs. You can find the perfect hot press for your clothing item from us. Whether it is transferred to shirts or hoodies, or on special surfaces such as hats and shoes.

Applications

Technical Parameters

Heat transfer printers

Model HOLDWIN-602i Power 1500W
Printer Heads i3200×2 Ink supply method Siphon positive perssure ink supply
Media transfer pendulum film placing system Equipment width Net weight 216Kg/Gross Weight 260 Kg
Work environment Temperature:18-30℃ Humidity:40-60% Ink color CMYK+W
Effective Width 600mm Machine dimensions 1920×800×1667mm
Input power supply 200V 7V/110V 14A Package size 2300×760×860mm
Ink type Paint ink Printer interface High-speed Gigabit network cable transmission

Shaker

Printer Model DF700 shaking powder machine nput power supp 220V 18A /110V 36A
Drying method Lamp heating Work enviroment Temperature:18-30°c Humidity:40-60%
Heatiing width 600mm Equipment weight Net weight 155kg/Gross weight 190Kg
Heating temperature Recommended platfom heating 75°C/dry110°C Machine dimensions 1865X1050X1080mm
Power 4000W Package size 1250X1150X1280mm



Q&A

Q: What is the brand of this machine?
A: The brand of this machine is HOLDWIN

Q: What is the model of the heat transfer printer?
A: The model of the heat transfer printer is HOLDWIN-602i.

Q: What is the power consumption of the heat transfer printer?
A: The power consumption of the heat transfer printer is 1500W.

Q: How many printer heads does the heat transfer printer have?
A: The heat transfer printer has two i3200 printer heads.

Q: What is the media transfer method used by the heat transfer printer?
A: The media transfer method used by the heat transfer printer is pendulum film placing system.

Q: What is the equipment width of the heat transfer printer?
A: The equipment width of the heat transfer printer is 600mm.

Q: What is the recommended work environment for the heat transfer printer?
A: The recommended work environment for the heat transfer printer is Temperature: 18-30°C and Humidity: 40-60%.

Q: What is the effective width of the heat transfer printer?
A: The effective width of the heat transfer printer is 600mm.

Q: What is the input power supply required for the heat transfer printer?
A: The input power supply required for the heat transfer printer is 200V V7/110V 14A.

Q: What type of ink is used in the heat transfer printer?
A: The ink type used in the heat transfer printer is Paint ink.

Q: What is the interface used for connecting the heat transfer printer to other devices?
A: The interface used for connecting the heat transfer printer to other devices is High-speed Gigabit network cable transmission.

Q: What is the model of the shaker machine?
A: The model of the shaker machine is DF700 shaking powder machine.

Q: What is the drying method used by the shaker machine?
A: The drying method used by the shaker machine is Lamp heating.

Q: What is the recommended work environment for the shaker machine?
A: The recommended work environment for the shaker machine is Temperature: 18-30°C and Humidity: 40-60%.

Q: What is the heating width of the shaker machine?
A: The heating width of the shaker machine is 600mm.

Q: What is the power consumption of the shaker machine?
A: The power consumption of the shaker machine is 4000W.
