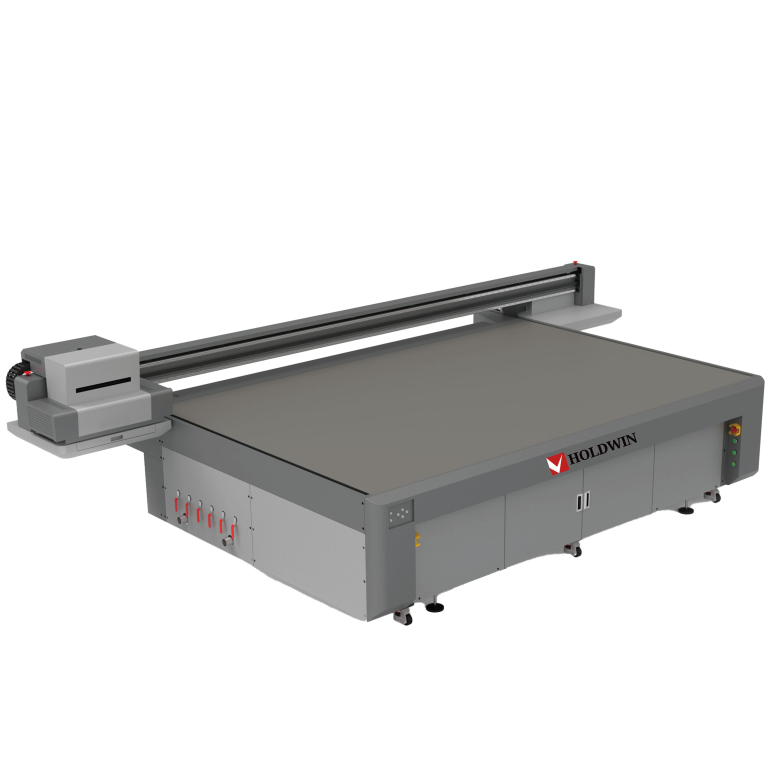

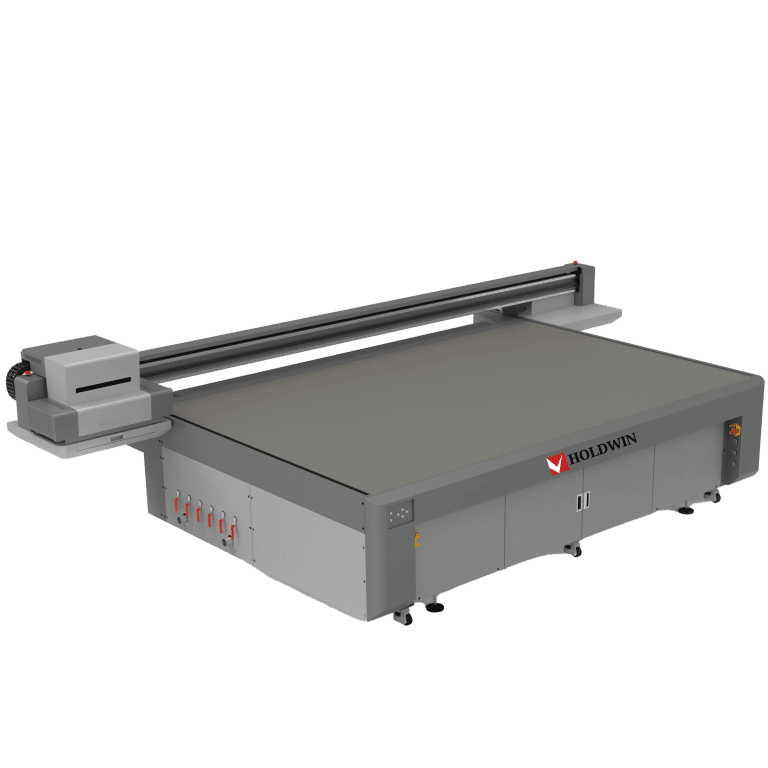

| Model | HOLDWIN-3220 Large Wide Industrial Printer |
| Application Industry | Chidren’s Furniture,Glass Curtain Wall,Children’s Furniture,Door panel Decorative paintings,Building Materials Printing |
| Print head | Ricoh G5/G6 |
| Precision of print head | 7PL/5PL/ variable point printing grayscale |
| Printing mode | white + color,double white + color +color, white + color + varnish |
| Frame structure | steel frame structure |
| Printing height | 15CM(ultrahigh customizable) |
| Print dimension | 3200x2000MM |
| Printing software | Print factory |
| Ink type | LED environmental UV ink |
| Ink color | W+CMYK+LC LM +light oil |
| Equipment dimension | 4870x2700x1320MM |
| Rated voltage | 110~110V / 220~240V/50/60HZ |
| USB port | USB 3.0 |
| Equipment N.W | 1850KG |
| Ricoh G5 Nozzle Printing Speed: | 8PASS double way l 15 square/H |
| 8PASS single way l 08 square/H | |
| 4PASS double way | 26 square/H | |
| 4PASS single way l 16 square/H | |
| Ricoh G6 Nozzle Printing Speed: | 8PASS double way l 20 square/H |
| 8PASS single way l 10 square/H | |
| 4PASS double way | 34 square/H | |
| 4PASS single way l 22 square/H |
Q&A
Q: What is the brand of this industrial printer?
A: The brand is HOLDWIN.
Q: What is the model of the printer?
A: The model is HOLDWIN-3220 Large Wide Industrial Printer.
Q: Which industries can this printer be used for?
A: It is suitable for children’s furniture, glass curtain walls, door panel decorative paintings, and building materials printing.
Q: What type of print head does the printer use?
A: The printer uses Ricoh G5/G6 print heads.
Q: What is the precision of the print head?
A: It has 7PL/5PL variable point printing grayscale precision.
Q: What are the supported printing modes?
A: The supported modes are white + color, double white + color + color, and white + color + varnish.
Q: What material is the frame structure made of?
A: The frame structure is made of steel.
Q: What is the maximum printing height of this equipment?
A: The printing height is 15CM, and it is ultrahigh customizable.
Q: What are the dimensions of the print area?
A: The print dimension is 3200x2000MM.
Q: Which software does this printer use?
A: It uses Print Factory software.
Q: What type of ink does the printer support?
A: It uses LED environmental UV ink.
Q: What ink colors are available for printing?
A: The ink colors include W+CMYK+LC LM + light oil.
Q: What are the overall dimensions of the equipment?
A: The equipment dimensions are 4870x2700x1320MM.
Q: What voltage range does the printer support?
A: It supports 110110V / 220240V at 50/60HZ.
Q: What type of USB port does the printer feature?
A: It has a USB 3.0 port.
Q: How much does the equipment weigh?
A: The net weight of the equipment is 1850KG.
Q: What is the printing speed of Ricoh G5 nozzles in 8PASS double way mode?
A: In 8PASS double way mode, the Ricoh G5 nozzles print at 15 square meters per hour.
Q: How fast do Ricoh G6 nozzles print in 4PASS double way mode?
A: In 4PASS double way mode, Ricoh G6 nozzles print at 34 square meters per hour.
Q: What is the Ricoh G6 printing speed in 4PASS single way mode?
A: It prints at 22 square meters per hour in 4PASS single way mode.
Q: What is the Ricoh G5 nozzle speed in 4PASS single way mode?
A: The Ricoh G5 nozzle prints at 16 square meters per hour in 4PASS single way mode.
Q: How does the Ricoh G6 speed compare in 8PASS double way and single way modes?
A: In 8PASS double way mode, it prints at 20 square meters per hour, while in single way mode, it prints at 10 square meters per hour.
Q: What is the primary advantage of using LED environmental UV ink?
A: The LED environmental UV ink is energy-efficient and eco-friendly, ensuring high-quality prints with minimal environmental impact.
Zhiyu is passionate about good products, good services, and good prices to let consumers know that choosing us is the right choice! For partners and end customers, we will provide one-on-one considerate smart services and provide you with more high-quality procurement solutions.
