3D Printed Textured Hot Foil Stamping Process

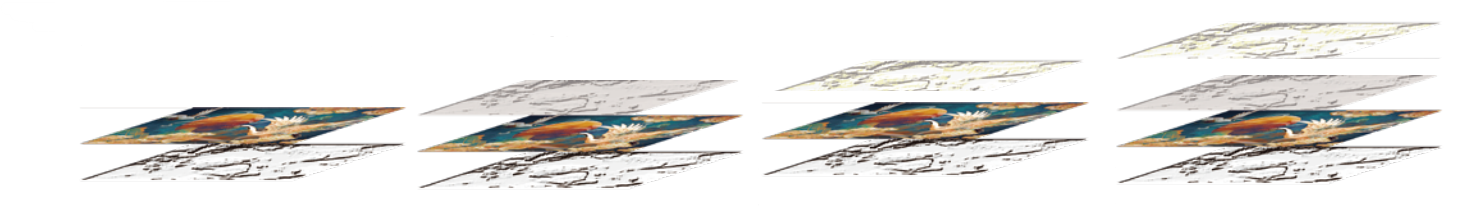

Third Layer Second Layer First Layer
Embossed Texture Painting Golding Process on three-dimensional textured surfaces for gilding treatment to enhance decorative effects and texture. After gilding, the embossed texture painting’s gilded areas will have significant improvements in both tactile and visual effects, with text and images displaying strong metallic luster and vivid colors that are eye-catching. This process is widely applied in various fields such as decorative paintings, packaging, book covers, etc., able to increase product decoration and class.
Multi-layer printing technology for various texture solutions in one go
White ink texture, UV full color, matte oil, hot gold light oil multi-solution combination into one molding, can achieve 3D texture relief cultural and artistic product hot gold enhancement effects, all available through HOLDWIN-5806E UV one-time printing molding. It meets the application needs of more customers for texture relief solutions, demonstrates new printing expression techniques, and enhances product added value.

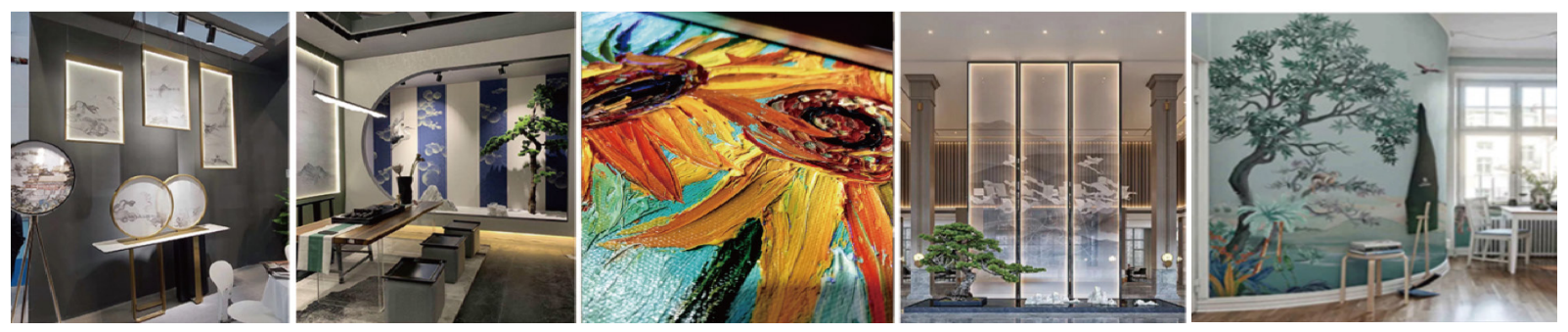

The 3D textured relief solution is widely applied in various fields, including but not limited to exhibition halls and galleries, advertising cultural background walls, decorative paintings, and art reproduction:
Exhibition Halls & Galleries: Inkjet printing technology with textured relief can be used for creating embossed wall prints on cloth and embossed print panels, making the displayed content stand out vividly and adding dynamic and attractive elements to the exhibition space;
Advertising Production: This technology can be applied in advertising production by using small text, lines, and textured reliefs to make the ad content more prominent and capture more attention;
Decorative Product Manufacturing: Inkjet printing technology with textured relief can be used to create various decorative items such as home decor paintings and crafts, by printing out raised or recessed textures that enhance the three-dimensional feel and artistic appeal of the products;
Art Reproduction: The technology can also be used for art reproduction, achieving precise replication of the original work through high-precision printing techniques while maintaining the texture and color of the original piece.

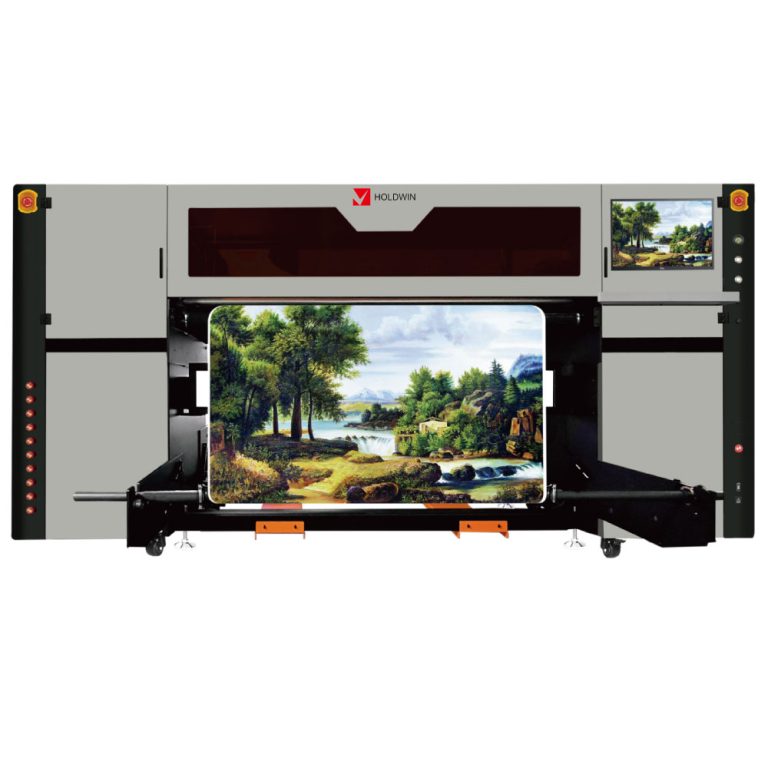

| Model | HOLDWIN-5806E UV | |
| Print Head | Epson i3200-U1 * 5 +Epson i3200(8)HD * 1 | |
| Color | W+CMYK+Lc+Lm+Lk+V1+V2 | |
| Printing Speed | 1 mm-standard feathering：5㎡/h | |
| Printing Technology | Piezoelectric Inkjet Printing | |
| Acceptable Media | Width | 1820 mm |
| Thickness | 1-35 mm | |
| Weight | 60 kg | |
| Printing Width | 1800 mm | |
| Ink | Type | UV Ink |
| Capacity | Continual Ink Supply Systems (1.5L Ink Tank) | |
| Ink Curing Unit | UV LED Lamps (Water-cooling UV lamp) | |
| Resolution | 2400 dpi | |
| Power Supply | AC 220V 士 10%, 50/60 HZ, 5000W | |
| RIP | Riprint UV | |
| Machine size | 3550 * 1560 * 1580 mm | |
| Machine weight | 850 kg | |
| Package size | 3860 * 1140 * 1610 mm | |
| Package weight | 920 kg | |
| Environment | Power on | Temperature:15℃ to 32℃/Humidity:35 to 80%(no condensation) |
| Power off | Temperature:5℃ to 40℃/Humidity:20 to 80%(no condensation) | |
| Accessories | USB cable, manual, drain bottle, ink cartridges, RIP software, etc. |
Q&A
Q: What brand does the model HOLDWIN-5806E UV belong to?
A: The model HOLDWIN-5806E UV is a product of the HOLDWIN brand.
Q: What type of print head is used in the HOLDWIN-5806E UV?
A: The HOLDWIN-5806E UV uses Epson i3200-U1 print heads, including 5 * Epson i3200(U1) and 1 * Epson i3200(8)HD.
Q: What colors does the HOLDWIN-5806E UV printer support?
A: The printer supports W+CMYK+Lc+Lm+Lk+V1+V2 colors.
Q: What is the printing speed of the HOLDWIN-5806E UV?
A: The HOLDWIN-5806E UV has a printing speed of 5 m²/h with 1 mm-standard feathering.
Q: What printing technology does the HOLDWIN-5806E UV use?
A: The HOLDWIN-5806E UV uses Piezoelectric Inkjet Printing technology.
Q: What is the maximum width of acceptable media for the HOLDWIN-5806E UV?
A: The maximum width of acceptable media for this printer is 1820 mm.
Q: What are the thickness and weight specifications for the media used in the HOLDWIN-5806E UV?
A: The printer supports media thickness ranging from 1-35 mm and a weight of up to 60 kg.
Q: What is the maximum printing width of the HOLDWIN-5806E UV?
A: The maximum printing width of the HOLDWIN-5806E UV is 1800 mm.
Q: What type of ink does the HOLDWIN-5806E UV use?
A: The printer uses UV ink.
Q: What is the capacity of the ink tank in the HOLDWIN-5806E UV?
A: The ink tank has a capacity of 1.5 liters, as part of the Continual Ink Supply Systems.
Q: How is the ink cured in the HOLDWIN-5806E UV?
A: The ink is cured using UV LED lamps with a water-cooling system.
Q: What is the resolution of the HOLDWIN-5806E UV printer?
A: The printer offers a resolution of 2400 dpi.
Q: What is the power supply requirement for the HOLDWIN-5806E UV?
A: The power supply required is AC 220V ± 10%, 50/60 HZ, 5000W.
Q: What are the dimensions and weight of the HOLDWIN-5806E UV printer?
A: The machine size is 3550 * 1560 * 1580 mm, with a machine weight of 850 kg and a package weight of 920 kg.
Q: What are the environmental conditions required for operating the HOLDWIN-5806E UV?
A: The operating environment requires a temperature of 15℃ to 32℃ and humidity levels of 35% to 80% (with no condensation). When powered off, the temperature should be between 5℃ to 40℃, and humidity between 20% to 80% (no condensation).
Q: What accessories are included with the HOLDWIN-5806E UV?
A: The accessories include a USB cable, manual, drain bottle, ink cartridges, RIP software, etc.
