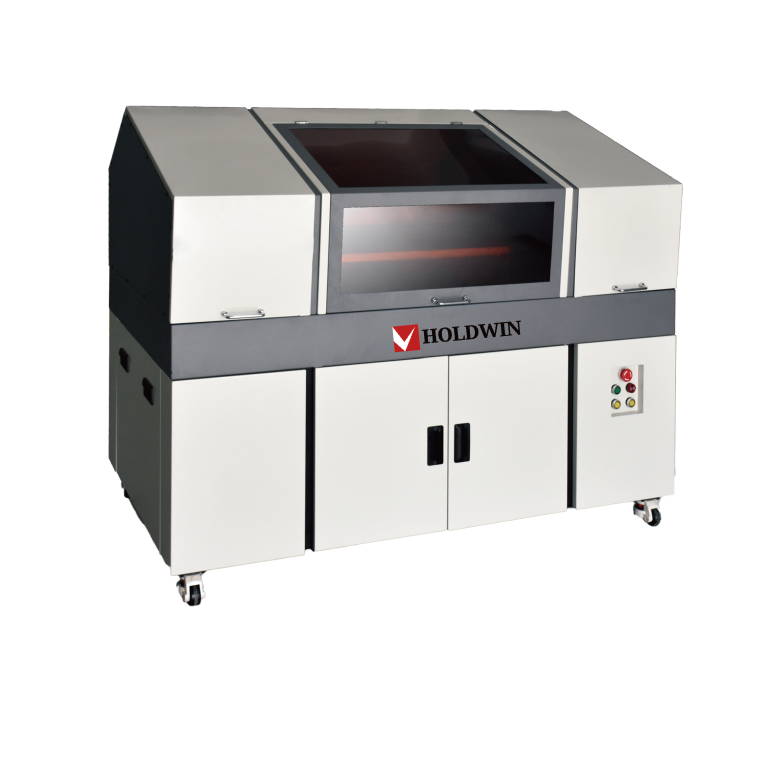

| Model | HOLDWIN-6030 Personalized Customized Handicraft Printer |
| Application Industry | PVC Keys,Watch Panel,Small Gift |
| Print head | Ricoh Gen 5i |
| Precision of print head | 2.5PL/8level variable point printing grayscale |
| Printing mode | white + color, white + color + varnish, color + white + color |
| Frame structure | steel frame structure |
| Printing height | 8CM |
| Print dimension | 650x300MM |
| Automatic altimeter | infrared automaticinduction |
| Printing software | Print factory |
| Ink type | LED environmental UV ink |
| Ink color | CMYK+W+Varnish |
| Equipment dimension | 1700x1100x1400MM |
| Rated voltage | 200~230V/50Hz |
| Curing mode | UV air – cooled single lamp |
| Equipment N.W | 350KG |
| Printing Speed: | Precision 720×1200 |
| 8Pass single way | 10 mins 1 plate | |
| 6Pass single way | 6 mins 1 plate | |
| 8Pass double way | 5 mins l plate | |
| 6Pass doulbe way l 3 mins 1 plate |
Q&A
Q: What is the brand of the printer?
A: The brand of the printer is HOLDWIN.
Q: What is the model of the printer?
A: The model of the printer is HOLDWIN-6030.
Q: In which industries is this printer typically used?
A: This printer is typically used in industries such as PVC Keys, Watch Panels, and Small Gifts.
Q: What type of print head does the HOLDWIN-6030 have?
A: The HOLDWIN-6030 has a Ricoh Gen 5i print head.
Q: What is the precision of the print head?
A: The precision of the print head is 2.5PL/8level variable point printing grayscale.
Q: What printing modes does the printer support?
A: The printer supports white+ color, white+ color+ varnish, and color+ white+ color printing modes.
Q: What is the frame structure of the printer?
A: The frame structure of the printer is made of steel.
Q: What is the maximum printing height of the printer?
A: The maximum printing height of the printer is 8CM.
Q: What are the print dimensions of the printer?
A: The print dimensions of the printer are 650x300MM.
Q: Does the printer have an automatic altimeter?
A: Yes, the printer has an infrared automatic induction altimeter.
Q: What is the printing software used by the printer?
A: The printing software used by the printer is Print factory.
Q: What type of ink does the printer use?
A: The printer uses LED environmental UV ink.
Q: What are the ink colors available for the printer?
A: The ink colors available for the printer are CMYK+W+Varnish.
Q: What are the dimensions of the equipment?
A: The equipment dimensions are 1700x1100x1400MM.
Q: What is the rated voltage for the printer?
A: The rated voltage for the printer is 200~230V/50Hz.
Q: What is the curing mode of the printer?
A: The curing mode of the printer is UV air-cooled single lamp.
Q: What is the net weight of the equipment?
A: The net weight of the equipment is 350KG.
Q: What is the printing speed of the printer at Precision 720×1200?
A: The printing speed at Precision 720×1200 is not specified in the table.
Q: How long does it take to print one plate in 8Pass single way mode?
A: It takes 10 minutes to print one plate in 8Pass single way mode.
Q: What is the printing speed in 6Pass single way mode?
A: The printing speed in 6Pass single way mode is 6 minutes per plate.
Q: How long does it take to print one plate in 8Pass double way mode?
A: It takes 5 minutes to print one plate in 8Pass double way mode.
Q: What is the printing speed in 6Pass double way mode?
A: The printing speed in 6Pass double way mode is 3 minutes per plate.
