Features

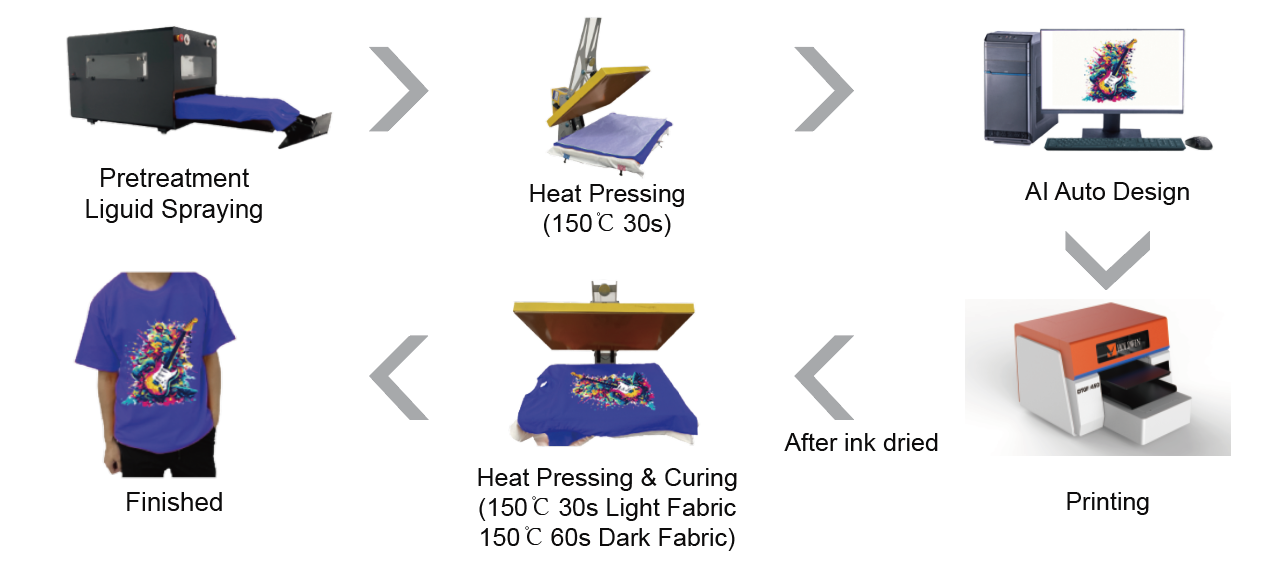

DIY T-shirt Process
Widely suitable for custom designs on T-shirts, hoodies, work uniforms, sports shirts, canvas bags, aprons, bags, and other products. Our solutions are economical and practical, featuring vivid and exquisite patterns
| Machine Model | HOLDWIN-DTG4050i | |
| Print Head | Epson i1600 | Epson i3200 |
| Print Head Quantity | 2 | |
| Printing Parameters | 165s/layout for dark fabric | 90/layout for dark fabric |
| 150s/layout for light fabric | 80/layout for light fabric | |
| Printing Size | 400*500mm | |
| Printing Media | 100%Cotton,Cotton PU<5%Light Fabric | |
| Printing Resolution | 720*2400 DPI | |
| Inks | Pigment Ink | |
| Colors | CMYK+W | |
| Ink Supply | Colors Ink Siphon+White Ink Circulation | |
| RIP | VSPrint | |
| Connection | Gigabit Network Port | |
| Power | 110/220VAC±5%,50/60HZ,10A | |
| Power On Environment | Temp.15-32℃, RH35-80%. 24h Standby Recommended |
|
| Power Off Environment | Temp.5-35℃, RH20-80%(No condensation). Power off more than 3 days requires manual cleaning |
|
| Packing Information | Size: 84*122*105 cm | |
| Weight: 60kg | ||
Q&A
Q: What is the brand of the machine?
A: The brand of the machine is HOLDWIN.
Q: What is the model number of the machine?
A: The model number of the machine is HOLDWIN-DTG4050i.
Q: Which print head does the machine use?
A: The machine uses the Epson i1600/3200 print head.
Q: How many print heads does the machine have?
A: The machine has 2 print heads.
Q: What is the printing speed for dark fabric?
A: The printing speed for dark fabric is 165 seconds per layout.
Q: What is the printing speed for light fabric?
A: The printing speed for light fabric is 150 seconds per layout.
Q: What is the maximum printing size of the machine?
A: The maximum printing size is 400x500mm.
Q: What types of media can the machine print on?
A: The machine can print on 100% cotton, cotton PU, and fabrics with less than 5% light fabric.
Q: What is the printing resolution of the machine?
A: The printing resolution of the machine is 720×2400 DPI.
Q: What type of inks does the machine use?
A: The machine uses pigment inks.
Q: What color options are available for printing?
A: The machine supports CMYK and white colors.
Q: How is the ink supplied to the machine?
A: The ink is supplied through a colors ink siphon and white ink circulation system.
Q: What type of connection does the machine use?
A: The machine uses a gigabit network port for connection.
Q: What is the power requirement for the machine?
A: The machine requires 110/220VAC±5%, 50/60HZ, 10A power.
Q: What is the recommended operating environment for the machine?
A: The recommended operating environment is a temperature of 15-32°C and relative humidity of 35-80%, with 24-hour standby recommended.
Q: What is the required environment when the machine is powered off?
A: When powered off, the environment should be between 5-35°C and relative humidity of 20-80%, with no condensation. If powered off for more than 3 days, manual cleaning is required.
Q: What information is provided about packing?
A: The packing information includes the machine size/package size and machine weight/package weight.
