Printing speed

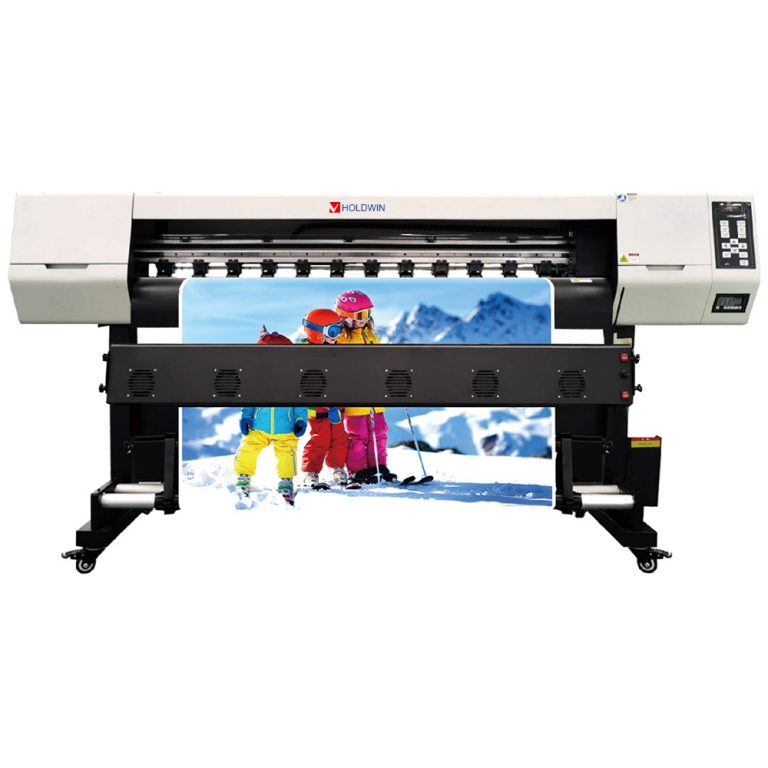

HOLDWIN-1601（EpsonI3200-A1/E1*1）Printing speed:
HOLDWIN-1801（EpsonI3200-A1/E1*1）Printing speed:
High-speed micro piezoelectric inkjet printing technology
HOLDWIN-1601/1801 is equipped with a single-headed original Epson I3200 printing head, which adopts advanced board control technology, and the industrial-grade design ensures the durability of the print head.

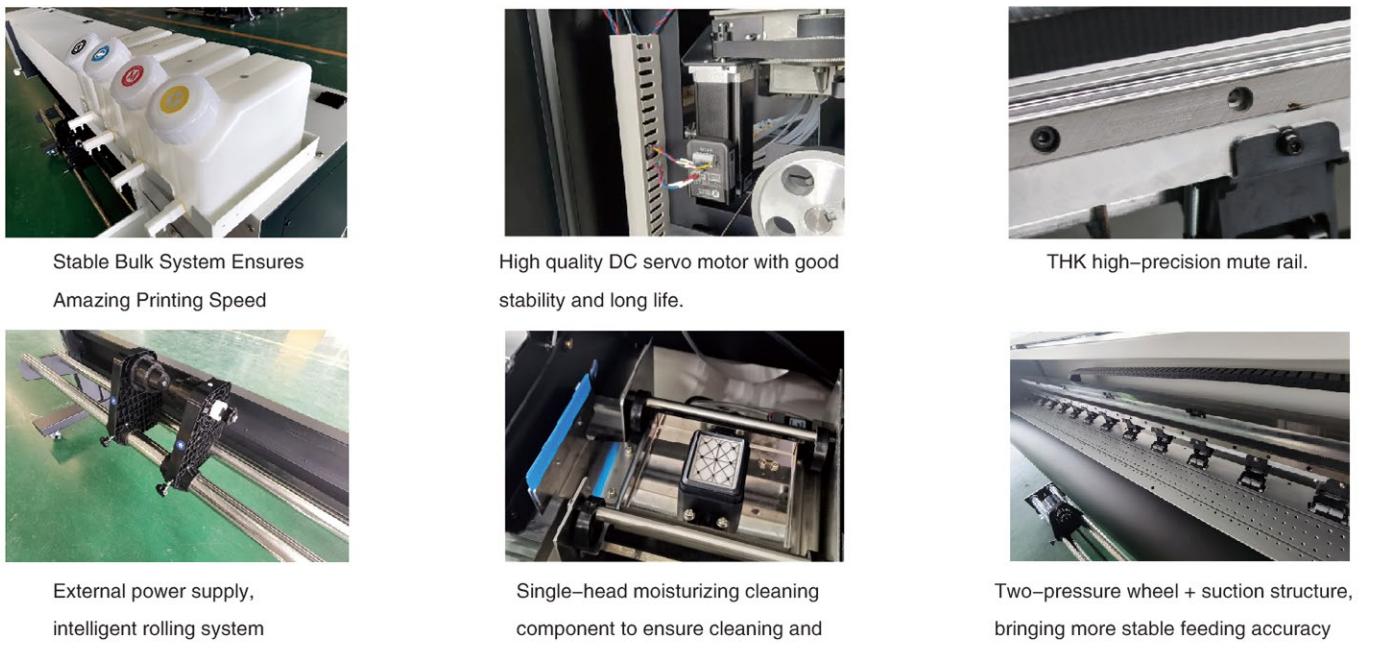

Technical Characteristics

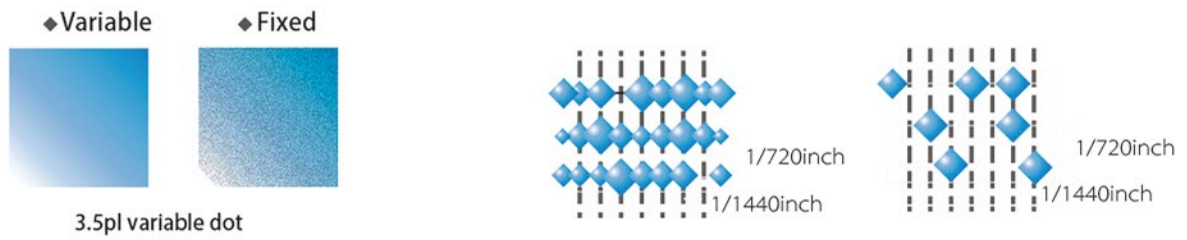

Intelligent inkjet printing technology and variable ink droplets ensure perfect printing output, greatly improve the printing speed, and meet the requirements of users for printing quality and speed.
Suitable for: indoor and outdoor PP, indoor and outdoor photo paper, car sticker, water-based lightbox film, eco solvent lightbox film, canvas, non-woven, digital textile printing.
| Model | HOLDWIN-1601 | HOLDWIN-1801 | |
| Print head | Epson 13200-A1/E1x1 | ||
| Color | CMYK | ||
| Printing speed | 4pass(360x2400dpi):21 sqm/h | 4pass(360x2400dpi):23 sqm/h | |
| Printing mode | Piezoelectric inkjet printing | ||
| Medium | Broad width | 1620 mm | 1820 mm |
| Thickness | 1 mm | ||
| Weight | 60 kg | ||
| Print wide width | 1600 mm | 1800 mm | |
| Ink cartridge | Kind | Eco Solvent Ink /Water base dye Ink/Sublimation Ink | |
| Capacity | Direct supply system(1.5 liter ink barrel) | ||
| Power | Operating status:3000W | ||
| Printing accuracy | 3600 dpi | ||
| Port | LAN | ||
| Voltage | AC 220V±10%,50/60 HZ | ||
| Software | Riprint /PhotoPrint | ||
| Machine size /weight | 2585x685x1482 mm/220KG | 2800x700x1500 mm/250KG | |
| Packaging size /weight | 2700x760x760 mm/250KG | 2920x760x760 mm/280KG | |
| Environment | Power on | Temperature:15℃-32℃/Moisture content:35-80%(No condensation) | |
| Power off | Temperature:5℃-40℃/Moisture content:20-80%(No condensation) | ||
| Attachment | Data cable,paper press,user manual,waste ink cartridge,ink cartridge,RIP software,etc. | ||
Q&A
Q: What is the printing speed of the HOLDWIN-1801 model?
A: The printing speed of the HOLDWIN-1801 model is 4pass (360x2400dpi): 23 square meters per hour.
Q: Which Epson print head does the HOLDWIN-1601 model use?
A: The HOLDWIN-1601 model uses the Epson 13200-A1/E1x1 print head.
Q: What is the maximum printing width for the HOLDWIN-1801 model?
A: The maximum printing width for the HOLDWIN-1801 model is 1820 millimeters.
Q: What type of ink cartridge can be used in these models?
A: Eco Solvent Ink, Water base dye Ink, and Sublimation Ink can be used in these models.
Q: What is the voltage required for operating these machines?
A: The voltage required for operating these machines is alternating current 220 volts plus or minus ten percent, frequency 50 or 60 hertz.
Q: What software is needed for running these printers?
A: Riprint or PhotoPrint software is needed for running these printers.
Q: What is included as attachments with the printer?
A: Data cable, paper press, user manual, waste ink cartridge, and ink are included as attachments with the printer.
