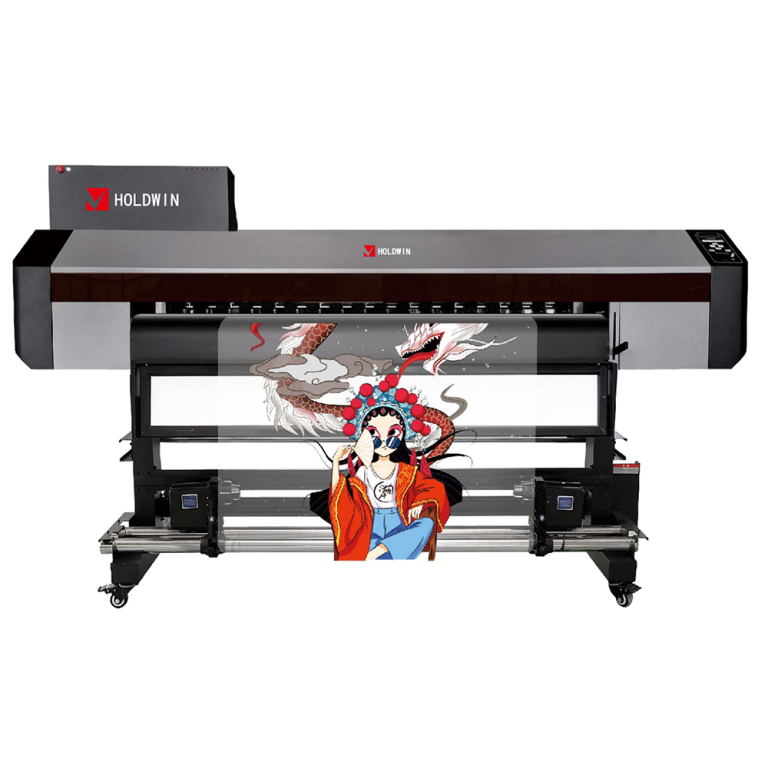

Color white color Gild LED-UV Inkjet Printer
Head:3/4 EpsonI3200-U1 Print Heads
Speed:

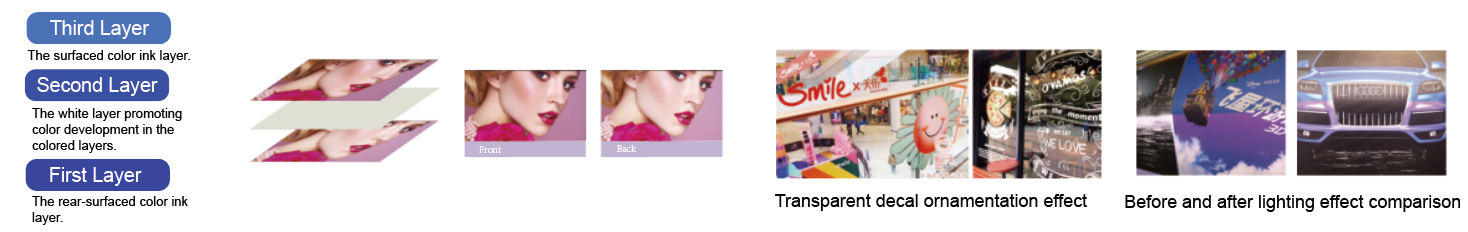

3 Layers printing the output is more delicate
With the interior light on, this three layers printing technology “Color + White +Color”, can acheive the magically changing effect of the patterns from backlight. The ability of switching the patterns through day and night, external and interior fully reflecting the performance techniques used in new advertising era, thus increasing the added value of your advertising.
3-5 Layers printing layering technology is used for one-time molding in multiple schemes.
Color white color + hollow, bronzing, frosting and other multiple schemes can be combined, which can achieve color white color + hollow, color + hollow + bronzing, color white color + hollow + frosting, color white color + bronzing + frosting, color white color + hollow + bronzing + frosting and other effects, which can be printed and molded at one time through HOLDWIN-1603/1604EU. Meet the needs of more customers for the application of the ultra-transparent glass sticker scheme, reflect the new needs of advertising performance method, and improve the added value of advertising.
One machine for multiple printing solutions under different color modes,can meet requirements from different customers .It can also replace some high-end eco-solvent printers which can be efficient and environmental friendly.
| Model | HOLDWIN-1603E UV | HOLDWIN-1604E UV | |
| Print Head | 3*Epsonl3200-U1 Print Heads | 4 Epsonl3200-U1 Print Heads | |
| Printing Technology | Piezoelectric Inkjet | ||
| Acceptable Media | Width | 1620 mm | |
| Thickness | 1 mm | ||
| Weight | 60 kg | ||
| Printing Width | 1600 mm | ||
| Ink | Type | UV Ink | |
| Capacity | Continual Ink Supply System(1.5L ink tank) | ||
| Color | CMYK/CMYK+W/CMYK+W+CMYK/Scrub/Gild | ||
| Printing Resolution | Maximum 2400 dpi | ||
| Ink Curing Unit | Dual UV LED Lamps (Water-cooling UV lamp) | ||
| Interface | LAN | ||
| Power Supply | AC 220V士10%,16A,50/60 HZ | ||
| RIP | Riprint /PhotoPrint | ||
| Machine size /weight | 2770x740x1592 mm /350 kg | ||
| Package size /weight | 2674x768x1571 mm+585x450x385 mm(UV water tank)/400 kg | ||
| Environment | Power on | Temperature:15℃ to 32℃/Humidity:35 to 80%(no condensation) | |
| Power off | Temperature:5℃ to 40℃/Humidity:20 to 80%(no condensation) | ||
| Accessories | USB cable,media clamp,manual,drain bottle,ink cartridges,RIP software,etc. | ||
Q&A
Q: What are the models being discussed?
A: The models under discussion are the HOLDWIN-1603E UV and HOLDWIN-1604E UV printers.
Q: How many print heads do these models have and what type are they?
A: The HOLDWIN-1603E UV has 3 Epsonl3200-U1 print heads, while the HOLDWIN-1604E UV has 4 Epsonl3200-U1 print heads.
Q: What printing technology do these printers use?
A: Both printers utilize Piezoelectric Inkjet printing technology.
Q: What is the maximum media width these printers can handle?
A: Both models can handle media up to 1620 mm in width.
Q: What is the maximum thickness of media these printers can process?
A: Both printers can process media up to 1 mm in thickness.
Q: What is the weight of these printers?
A: Both printers weigh 60 kg.
Q: What is the printing width for these models?
A: Both models have a printing width of 1600 mm.
Q: What type of ink do these printers use?
A: These printers use UV Ink.
Q: What is the capacity of the ink supply system?
A: Both printers use a Continual Ink Supply System with a 1.5L ink tank.
Q: What color configurations are available for printing?
A: Available color configurations include CMYK, CMYK+W, CMYK+W+CMYK, Scrub, and Gild.
Q: What is the maximum printing resolution these printers offer?
A: The maximum printing resolution is 2400 dpi.
Q: What kind of ink curing unit do these printers have?
A: Both printers feature Dual UV LED Lamps (Water-cooling UV lamp).
Q: What interfaces do these printers support?
A: Both printers support LAN connectivity.
Q: What are the power supply requirements for these printers?
A: Both printers require an AC 220V±10%, 16A, 50/60 HZ power supply.
Q: Which RIP software is compatible with these printers?
A: Both models are compatible with Riprint / PhotoPrint RIP software.
Q: What are the dimensions and weight of the machines?
A: Both machines measure 2770x740x1592 mm and weigh 350 kg.
Q: What are the dimensions and weight of the packaging for each model?
A: The packaging measures 2674x768x1571 mm plus 585x450x385 mm (for the UV water tank), and weighs 400 kg.
Q: What are the environmental requirements when the printers are powered on and off?
A: When powered on, the required environment is a temperature range of 15℃ to 32℃ and humidity of 35 to 80% (no condensation). When powered off, the environment should be within a temperature range of 5℃ to 40℃ and humidity of 20 to 80% (no condensation).
Q: What accessories come with these printers?
A: Accessories included are a USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc.
