PRODUCT

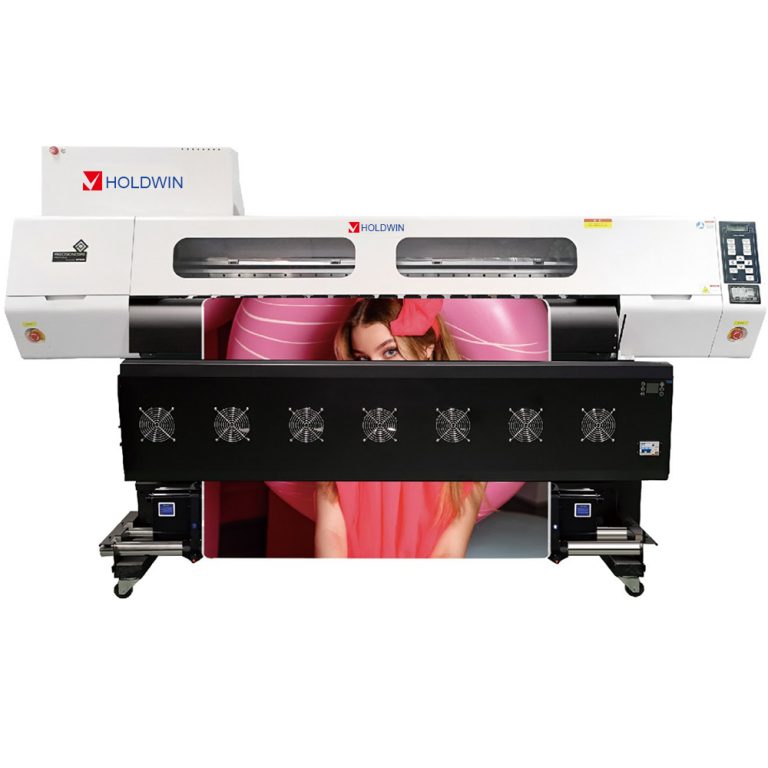

HOLDWIN-1604X

Name: HOLDWIN-1604X
Brand: Holdwin
SKU: 4585
Rating: 5 (1 reviews)

Colors appear with the shadows. Eight colors are better.

Economic and environmental protection / labor-saving and high efficiency / high image quality

Head: Epson I3200-E1/A1 * 4

Printing Technology: Micro piezoelectric inkjet printing

PRODUCT DETAILS

Features

Eight-colors：

4pass(360*2400dpi): 40 sqm/h
6pass(720*1800dpi): 30 sqm/h
8pass(720*2400dpi): 21 sqm/h

Four-colors：

4pass(360*2400dpi): 80 sqm/h
6pass(720*1800dpi): 60 sqm/h
8pass(720*2400dpi): 42 sqm/h

High-speed micro-piezoelectric inkjet printing technology

HOLDWIN-1604X is equipped with 4 Epson i3200-A1/E1 printing heads, using micro-pisoelectric inkjet printing technology, variable ink droplet printing, high-precision output, and industrial-level design to ensure the durability of the print head.

AI intelligent work efficiency
High accuracy, fast speed, stable structure
Worry-free after-sales service

High-end configuration high-definition printing: micro piezoelectric inkjet printing technology – realistic imaging, delicate picture, the advantages are as follows:

Curvy appearance design, full of technology, beautiful and fashionable, convenient and intuitive operation interface;
Intelligent design, compatible with a variety of printing software configurations;
Stable continuous supply system, equipped with four 3L large ink bottles, constant pressure stable output quality;
Three sections can be controlled for drying, and the area can be printed, that is, it can be dried immediately, saving energy consumption;
Gigabit network port transmision speed, power failure and continuous;
Variable ink drop technology, the picture layer is delicate and rich.

Technical Characteristics

Applications

Suitable for indoor and outdoor PP, indoor and outdoor photo paper, car sticker, water-based lightbox film, eco solvent lightbox film,canvas, non-woven, digital textile printing. The gorgeousness of eight colors will be relatively high, more expressive, and more suitable for wedding studios, high-end exhibitions, antique calligraphy and painting and other high-demand fields.

Technical Parameters

Model		HOLDWIN-1604X
Print head		Epson i3200-E1/A1×4
Printing technology		Micro piezoelectric inkjet printing
Medium size	width	210-1630 mm
	Thickness	1 mm
	Weight	60 kg
Print wide		210-1600 mm
Ink cartridge	Kind	Eco Solvent ink /Water base Dye ink /Sublimation ink
	Capacity	Continuous supply system (3-liter ink barrel)
	Color	CMYK/CMYK LC LM LK LLk/CMYK LC LM Or R
Power consumption		7500W
Maximum resolution		2400 dpi
Port		LAN
Voltage		AC 220V±5%,16A,50/60 HZ
Medium heating system		Three-stage heating system,set the temperature range 30℃-60℃
Machine size /weight		2668×740×1612 mm/380 kg
Package size /weight		2920×760×1000 mm/450 kg
Environment	Power on	Temperature:15℃-32℃/Moisture content:35-80%(No condensation)
Environment	Power off	Temperature:5℃-40℃/Moisture content:20-80%(No condensation)
Attachment		Bracket,receiver,air-drying system,large ink supply system,power cord,paper press,user manual,etc.

Q&A

Q: Which print head does the HOLDWIN-1604X use?
A: The HOLDWIN-1604X uses an Epson i3200-E1/A1×4 print head.

Q: What type of printing technology does the HOLDWIN-1604X employ?
A: The HOLDWIN-1604X employs micro piezoelectric inkjet printing technology.

Q: What is the maximum width that can be printed using the HOLDWIN-1604X?
A: The maximum width that can be printed using the HOLDWIN-1604X is 210-1630 mm.

Q: What is the minimum thickness of medium that can be used with the HOLDWIN-1604X?
A: The minimum thickness of medium that can be used with the HOLDWIN-1604X is 1 mm.

Q: How much does the HOLDWIN-1604X weigh when fully assembled?
A: The HOLDWIN-1604X weighs 60 kg when fully assembled.

Q: What types of ink cartridges are compatible with the HOLDWIN-1604X?
A: Eco Solvent ink, Water base Dye ink, and Sublimation ink are all compatible with the HOLDWIN-1604X.

Q: How many liters of ink are included in each continuous supply system for the HOLDWIN-1604X?
A: Each continuous supply system for the HOLDWIN-1604X includes 3 liters of ink.

Q: What color options are available for the HOLDWIN-1604X’s ink cartridges?
A: CMYK/CMYK LC LM LK LLL/CMYK LC LM Or R are all available color options for the HOLDWIN-1604X’s ink cartridges.

Q: What is the maximum power consumption of the HOLDWIN-1604X?
A: The maximum power consumption of the HOLDWIN-1604X is 7500W.

Q: What is the maximum resolution that can be achieved using the HOLDWIN-1604X?
A: The maximum resolution that can be achieved using the HOLDWIN-1604X is 2400 dpi.

Q: What port is used to connect the HOLDWIN-1604X to a computer or other device?
A: The HOLDWIN-1604X uses LAN as its port to connect to a computer or other device.

Q: What voltage range is required for the HOLDWIN-1604X to operate properly?
A: The HOLDWIN-1604X requires AC 220V±5%,16A,50/60HZ to operate properly.

Q: What type of heating system is used by the HOLDWIN-1604X?
A: The HOLDWIN-1604X uses a three-stage heating system.

Q: What is the temperature range that can be set for the HOLDWIN-1604X’s three-stage heating system?
A: The temperature range that can be set for the HOLDWIN-1604X’s three-stage heating system is 30℃-60℃.
