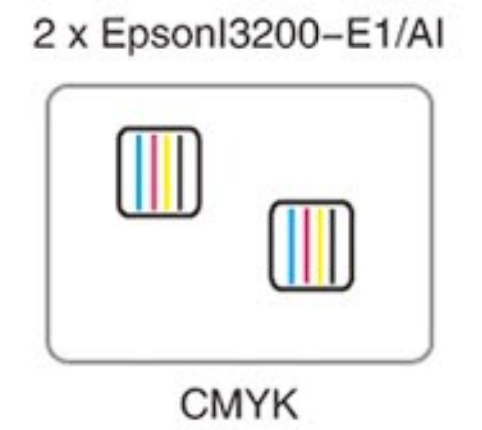

4Colors(EpsonI3200-A1/E1 * 2)Printing Speed:
High-speed micro-piezoelectric inkjet printing technology

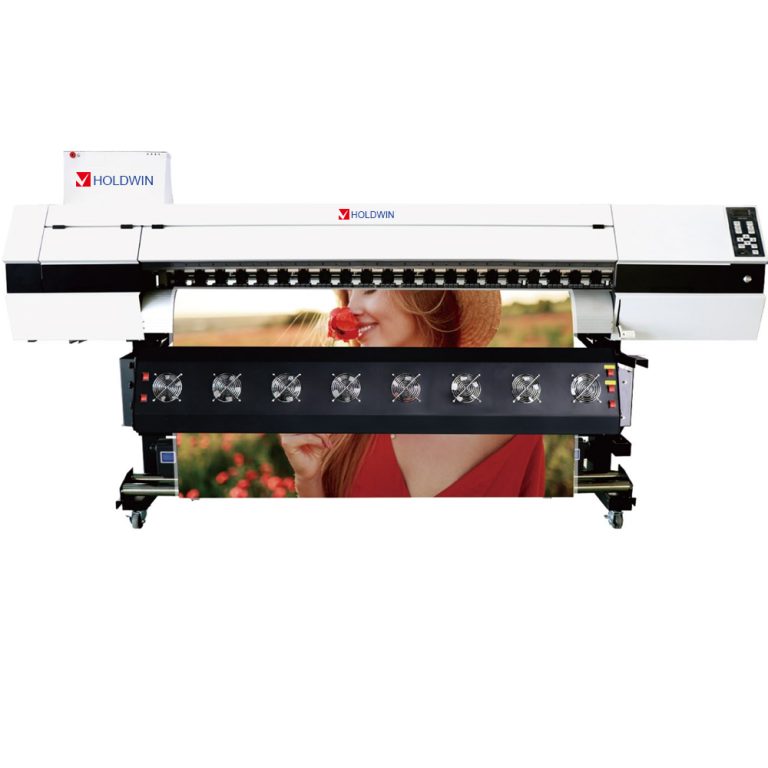

HOLDWIN-1802 is equipped with 2 Epson I3200-A1/E1 printing heads, using micro-pisoelectric inkjet printing technology, variable ink droplet printing, high-precision output, and industrial-level design to ensure the durability of the print head.
High-end configuration high-definition printing: micro piezoelectric inkjet printing technology – realistic imaging, delicate picture, the advantages are as follows:
Technical Characteristics
Suitable for: indoor and outdoor PP, indoor and outdoor photo paper, car sticker, water-based lightbox film, eco solvent lightbox film, canvas, non-woven, digital textile printing. The gorgeousness of eight colors will be relatively high, more expressive, and more suitable for wedding studios, high-end exhibitions, antique calligraphy and painting and other high-demand fields.
| Model | HOLDWIN-1802 | |
| Print Head | 2 i3200-E1/A1 Print Heads | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 1820 mm |
| Thickness | 1 mm | |
| Weight | 60 kg | |
| Print Resolution | 3600 dpi | |
| Printing Width | 210-1800 mm | |
| Ink | Type | Water baseDye Ink /Eco Solvent Ink /Sublimation Ink |
| Capacity | Continual Ink Supply System(1.5L ink tank) | |
| Color | 4 colors (Cyan,Magenta,Yellow,Black)/8 colors | |
| Media Heating System | Intergrated post heater &Infrared Dryer &Fan system | |
| Interface | LAN | |
| Power Supply | AC 220V士10%,16A,50/60HZ | |
| RIP | Riprint /PhotoPrint | |
| Machinesize /weight(with bracket) | 3200x1100x1580 mm /360kg | |
| Package size /weight (with bracket) | 3350×760×1050 mm /400kg | |
| Power | Operating status:6500W | |
| Environment | Power on | Temperature:15℃-32℃/Moisture content:35-80%(No condensation) |
| Power off | Temperature:5℃-40℃/Moisture content:20-80%(No condensation) | |
| Accessories | USB cable,media clamp,manual,drain bottle,ink cartridges,RIP software,etc. |
Q&A
Q: What is the model of the printer?
A: The model of the printer is HOLDWIN-1802.
Q: How many print heads does the printer have?
A: The printer has two i3200-E1/A1 print heads.
Q: What is the printing technology used by the printer?
A: The printer uses piezoelectric inkjet technology.
Q: What is the maximum width of the acceptable media?
A: The maximum width of the acceptable media is 1820 mm.
Q: What is the maximum thickness of the acceptable media?
A: The maximum thickness of the acceptable media is 1 mm.
Q: What is the maximum weight of the acceptable media?
A: The maximum weight of the acceptable media is 60 kg.
Q: What is the print resolution of the printer?
A: The print resolution of the printer is 3600 dpi.
Q: What is the printing width of the printer?
A: The printing width of the printer is 210-1800 mm.
Q: What types of ink can be used with the printer?
A: The printer can use Water baseDye Ink, Eco Solvent Ink, or Sublimation Ink.
Q: What is the capacity of the ink supply system?
A: The ink supply system has a capacity of 1.5 L ink tank.
Q: How many colors of ink can be used with the printer?
A: The printer can use either 4 colors (Cyan, Magenta, Yellow, Black) or 8 colors.
Q: What is the media heating system of the printer?
A: The media heating system of the printer is an Integrated post heater & Infrared Dryer & Fan system.
Q: What is the interface of the printer?
A: The interface of the printer is LAN.
Q: What is the power supply of the printer?
A: The power supply of the printer is AC 220V±10%, 16A, 50/60HZ.
Q: What is the RIP software of the printer?
A: The RIP software of the printer is Riprint / PhotoPrint.
Q: What are the dimensions of the machine with its bracket?
A: The dimensions of the machine with its bracket are 3200x1100x1580 mm.
Q: What is the weight of the machine with its bracket?
A: The weight of the machine with its bracket is 360 kg.
Q: What are the dimensions of the package with its bracket?
A: The dimensions of the package with its bracket are 3350x760x1050 mm.
Q: What is the weight of the package with its bracket?
A: The weight of the package with its bracket is 400 kg.
Q: What is the power consumption of the printer during operation?
A: The power consumption of the printer during operation is 6500W.
Q: What is the recommended temperature range for the printer when it’s turned on?
A: The recommended temperature range for the printer when it’s turned on is 15℃-32℃.
Q: What is the recommended humidity range for the printer when it’s turned on?
A: The recommended humidity range for the printer when it’s turned on is 35-80% (no condensation).
Q: What is the recommended temperature range for the printer when it’s turned off?
A: The recommended temperature range for the printer when it’s turned off is 5℃-40℃.
Q: What is the recommended humidity range for the printer when it’s turned off?
A: The recommended humidity range for the printer when it’s turned off is 20-80% (no condensation).
Q: What are some examples of accessories that come with the printer?
A: Some examples of accessories that come with the printer include USB cable, media clamp, manual, drain bottle, ink cartridges, and RIP software.
