PRODUCT

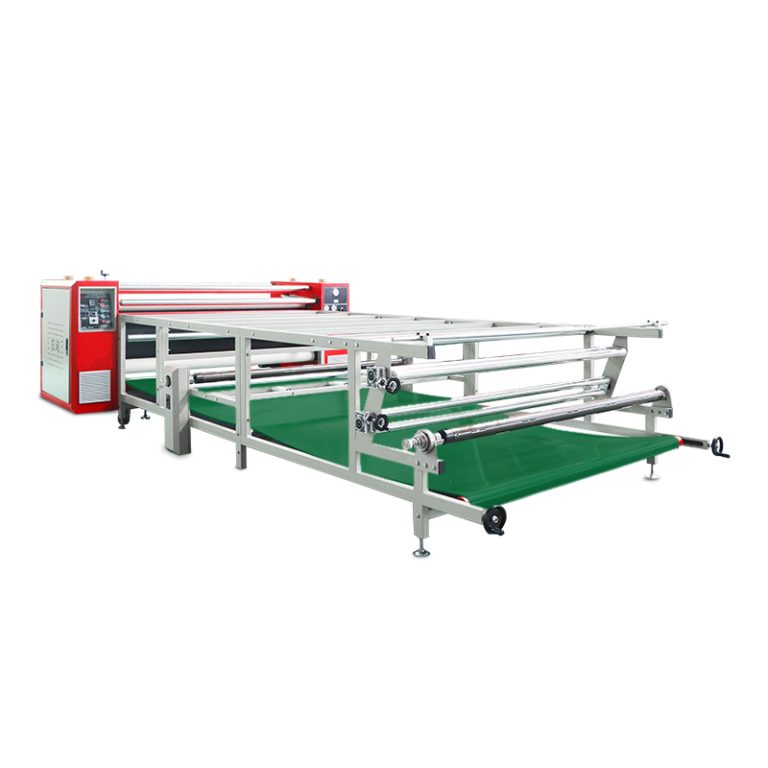

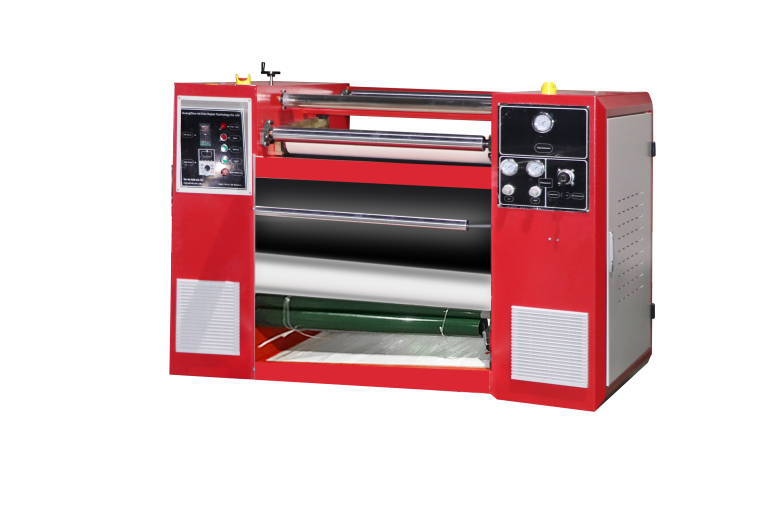

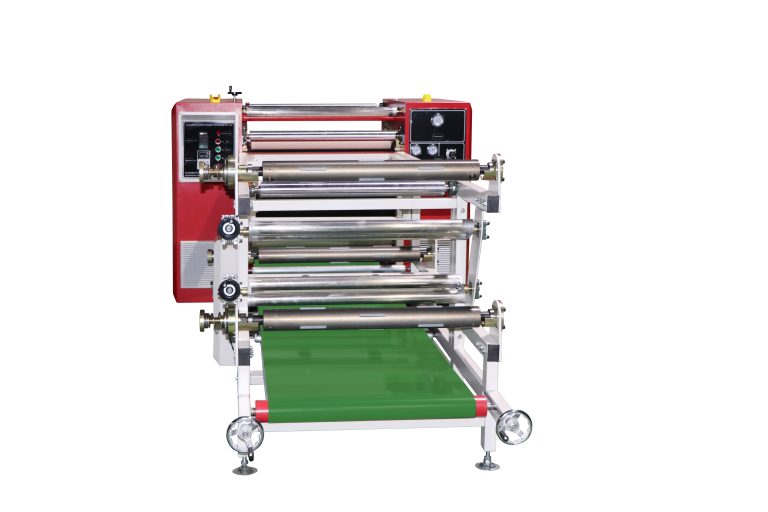

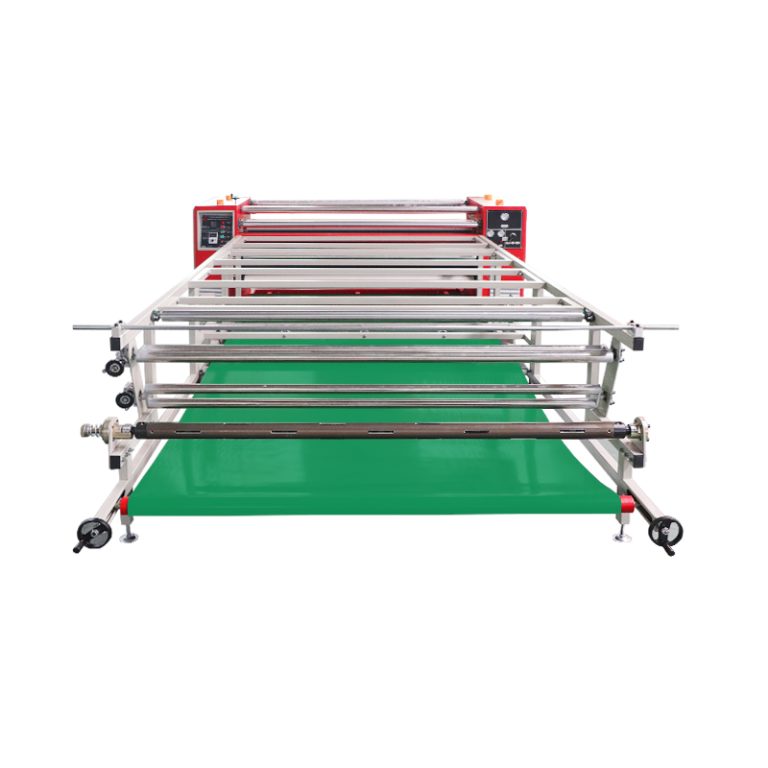

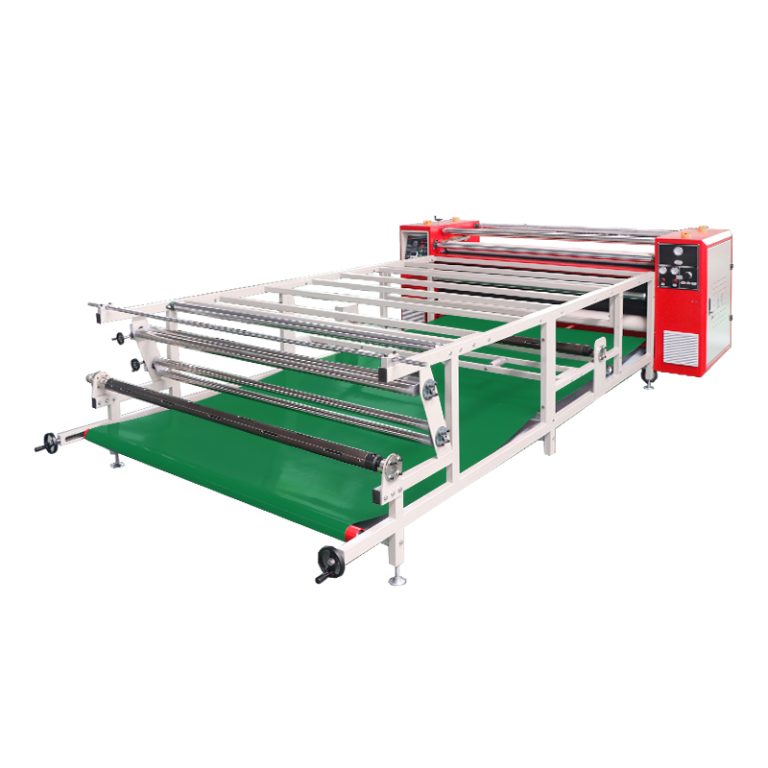

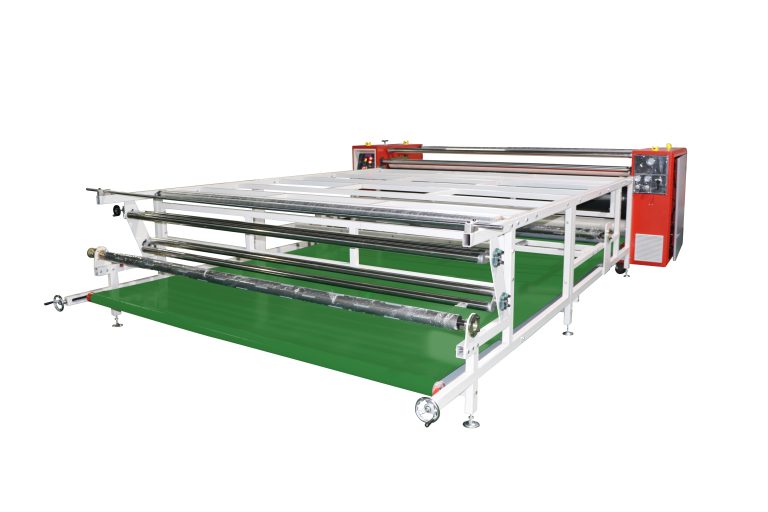

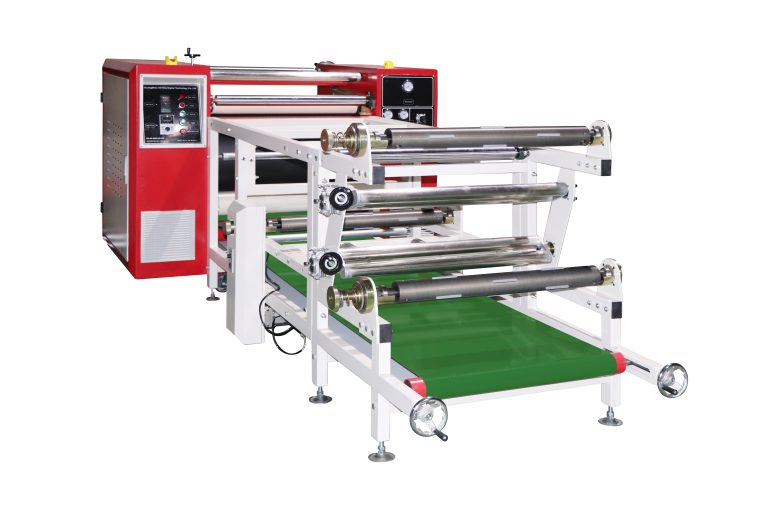

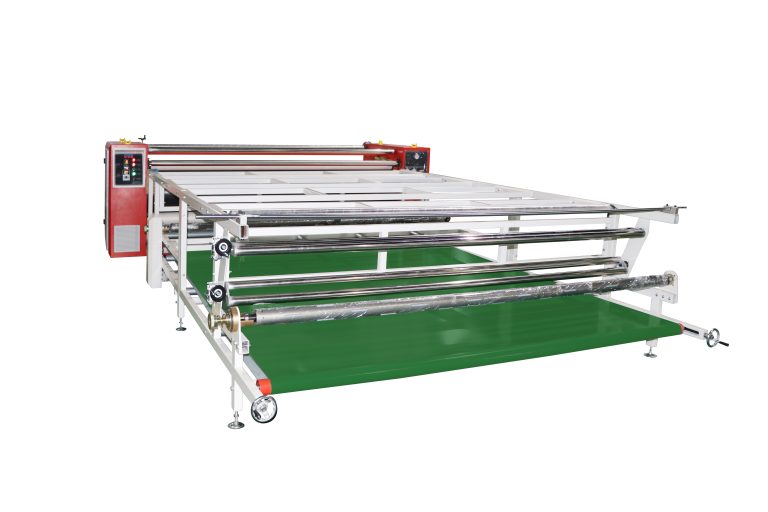

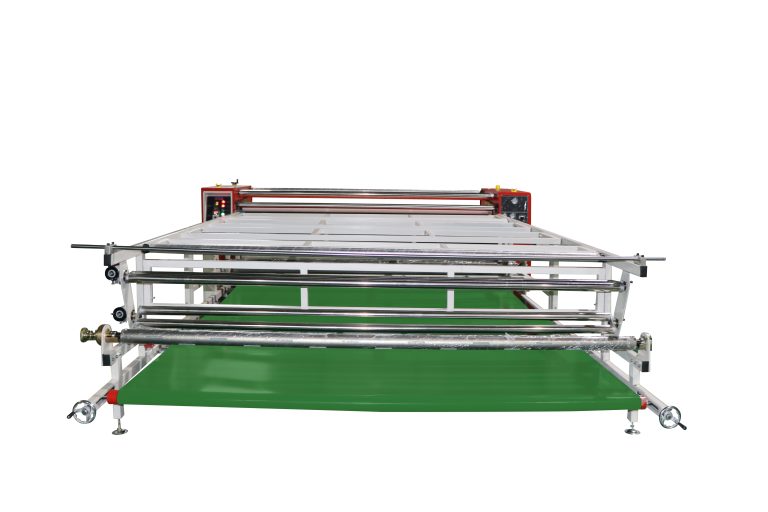

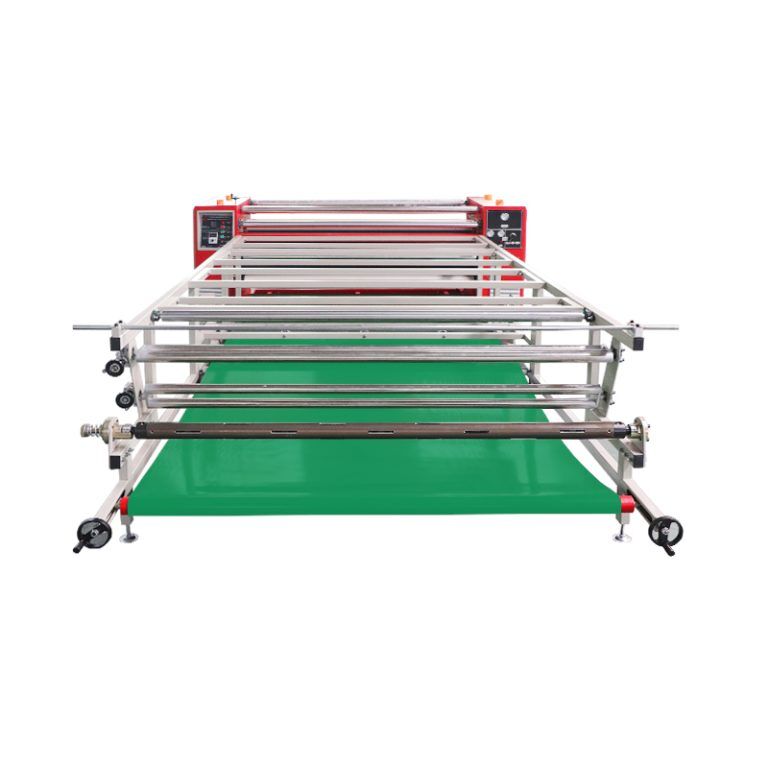

HOLDWIN-420

Drum Diameter: 420mm
Transfer Width: 1700mm / 1900mm
Voltage: 380V
Power: 28KW
Temperature Range: 0-400°C
Time Range: 0-999 seconds
Main Machine Dimensions: 110012602580mm (for 1700mm transfer width) / 110012602780mm (for 1900mm transfer width)

PRODUCT DETAILS

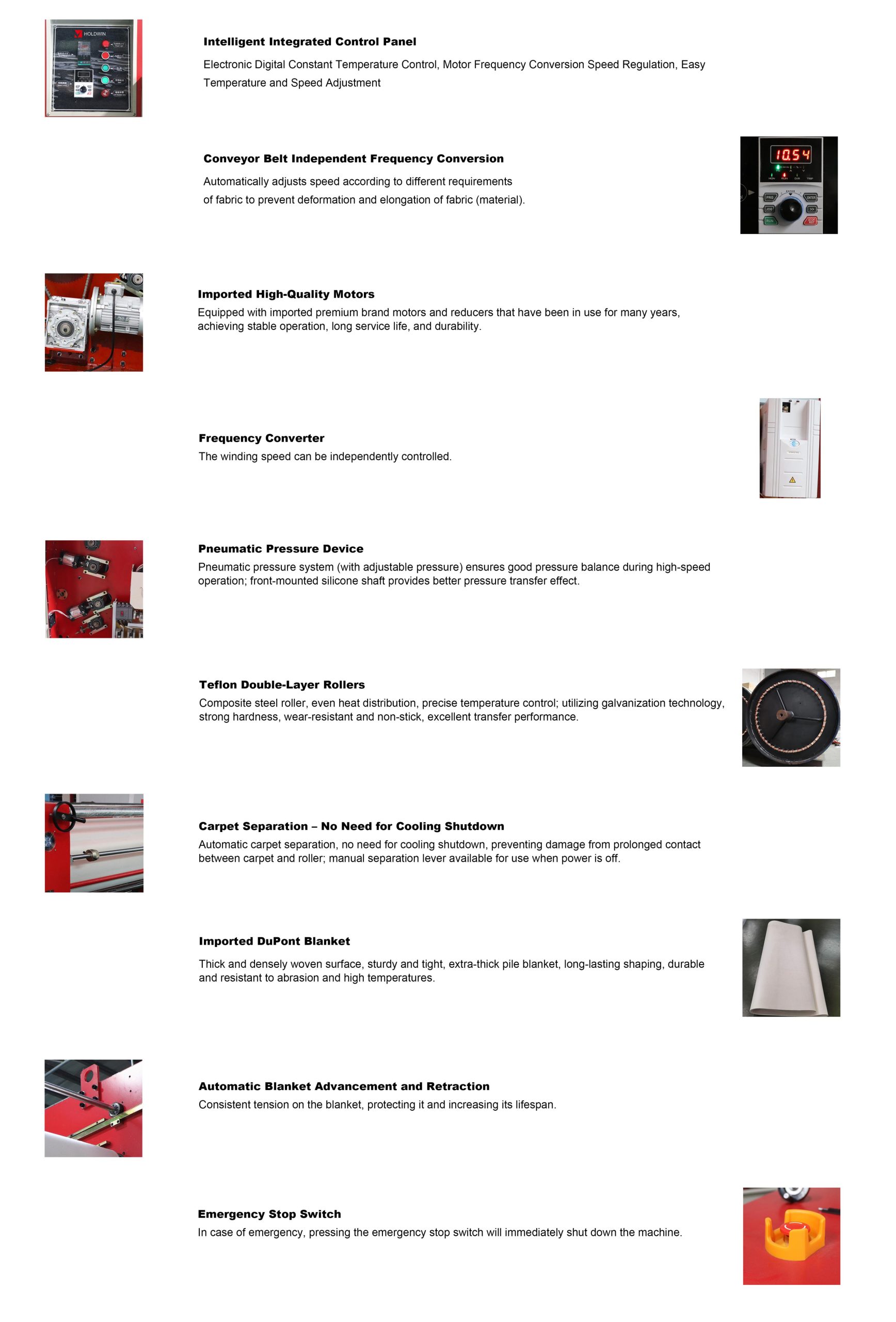

Features

Advantages of Heat Transfer Printing Process

Low cost and fast production speed for small batches
Environmentally friendly materials with no pollution
No need to spend money on plate-making fees
Faster sample production speed
Unlimited number of colors, resulting in more vivid and delicate patterns
Wide range of applications (textiles, home decoration, advertising leather, etc.)
Excellent colorfastness, with light and wash resistance reaching grade 4 or above
Soft feel and excellent breathability

Heat Transfer Process

Step 1: Create a high-resolution picture.
Step 2: Computer layout output size and quantity.
Step 3: Print the pattern onto heat transfer paper using a heat transfer printer.
Step 4: Use a heat press machine or hot stamping machine to print the pattern onto the product at high temperature.
Step 5: Finished product.

Applicaion

Technical Parameters

Drum Diameter	420mm
Transfer Width	1700mm / 1900mm
Voltage	380V
Power	28KW
Temperature Range	0-400°C
Time Range	0-999 seconds
Main Machine Dimensions	110012602580mm (for 1700mm transfer width) / 110012602780mm (for 1900mm transfer width)

Q&A

Q: What is the diameter of the drum?
A:The diameter of the drum is 420mm.

Q: What are the transfer width options available?
A:The transfer width options available are 1700mm and 1900mm.

Q: What is the voltage required for this machine?
A:The voltage required for this machine is 380V.

Q: How much power does this machine consume?
A:This machine consumes 25KW of power.

Q: What is the temperature range that this machine can handle?
A:The temperature range that this machine can handle is from 0 to 400 degrees Celsius.

Q: What is the time range that this machine can operate within?
A:The time range that this machine can operate within is from 0 to 999 seconds.

Q: What are the dimensions of the main machine?
A:The dimensions of the main machine vary depending on the transfer width option selected. For a transfer width of 1700mm, the dimensions are 1001x260x2580mm, while for a transfer width of 1900mm, the dimensions are 11001x260x2780mm.
