Speed
6 Gen5 print heads arrangement(CMYK):
6 Gen6 print heads arrangement(CMYK):
Features
High-efficiency UV LED technology;
Environmentally friendly UV ink meets international environment standards;
Industrial-grade structure, easy to operate, high stability;
Upgraded dual guide rails ensure more stable printing;
The media system with torque motor and air-shaft makes more stable rolling media;
Equipped soft film tension system offers suitable pressure for various media.

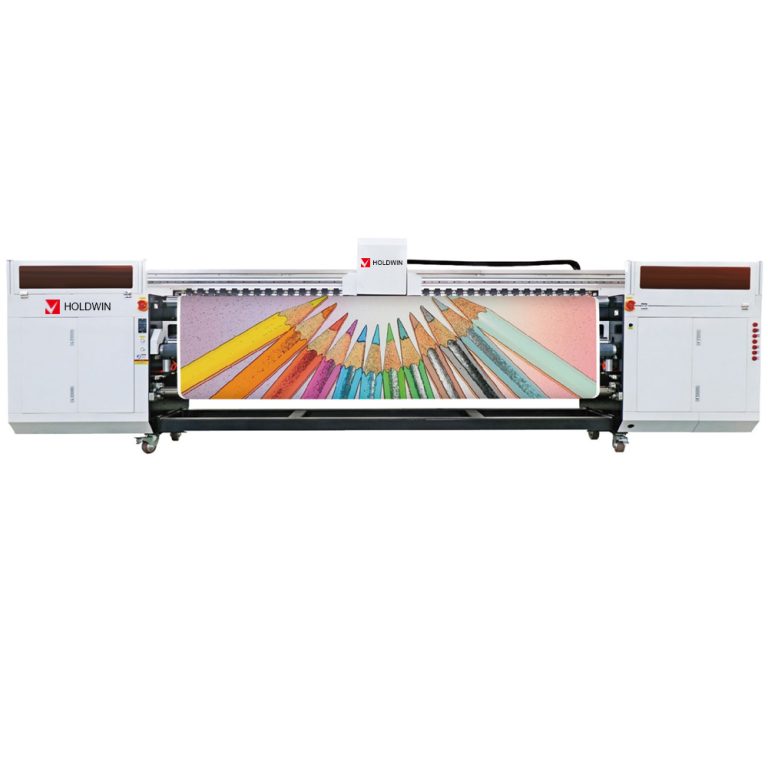

With LED UV curing technology, HOLDWIN-3200 UV Pro is one of the most competitive UV roll to roll printers which characterizes with excellent quality, high stability and easy operation. HOLDWIN-3200 UV enables to make high quality design in the most cost-effective way

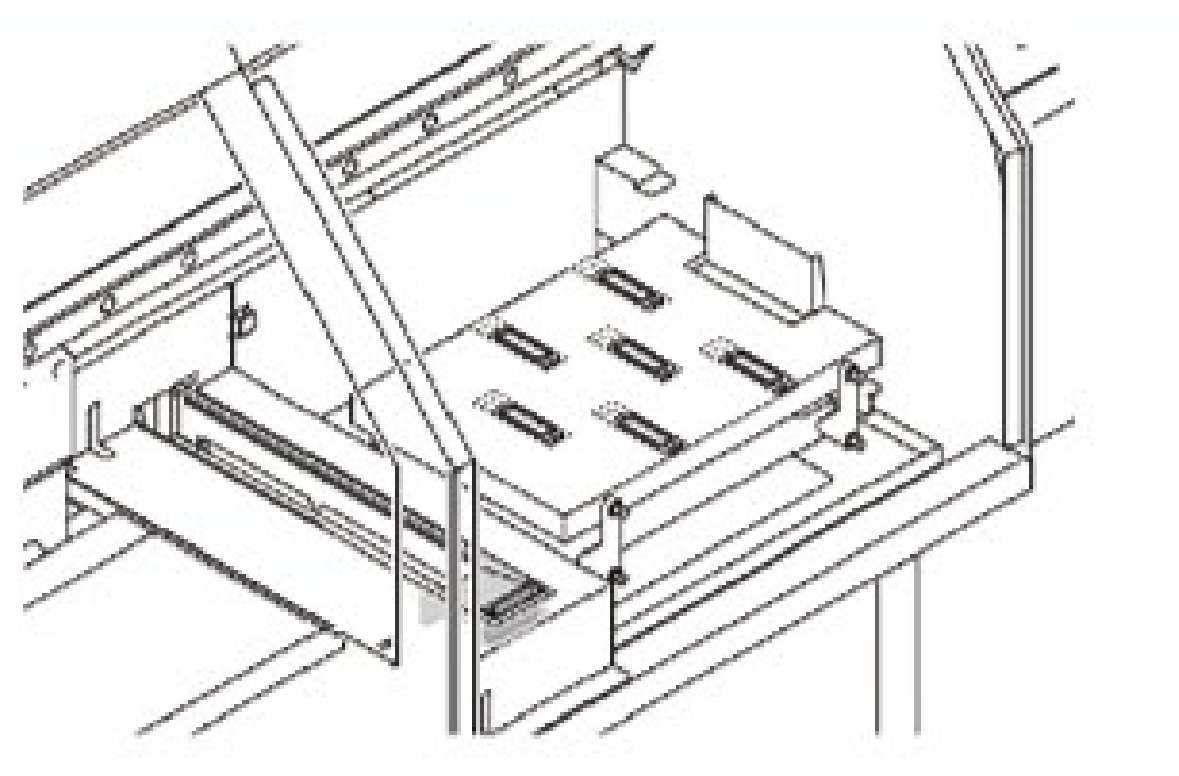

Maximum 6 Ricoh Gen5/G6 print heads

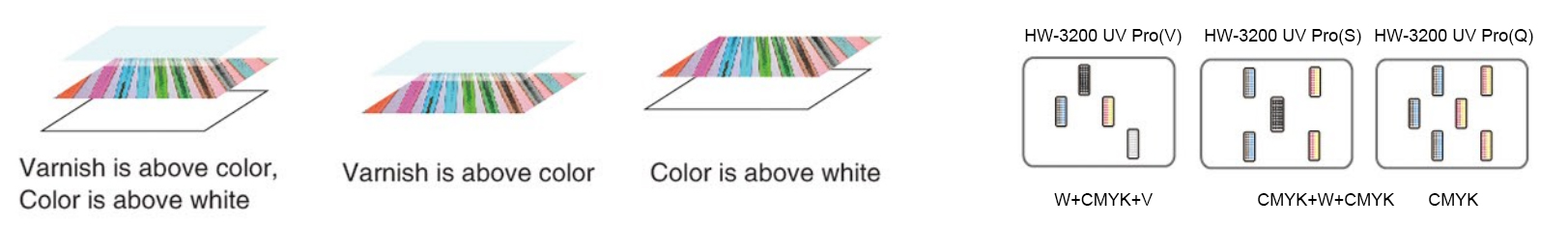

Three lines of print heads in a staggered layout achieves the highest productivity and allows for various applications with optional color modes including CMYK, W+CMYK, CMYK+W, CMYK+W+CMYK (three layers) and W+CMYK+V (three layers).

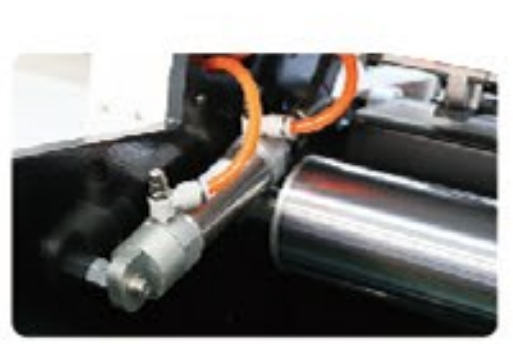

More stable upgraded media feeding system
New designs including adjustable air-driven pinch roller system, upgraded media roller surface and feed motor control system ensure stability of media feeding.

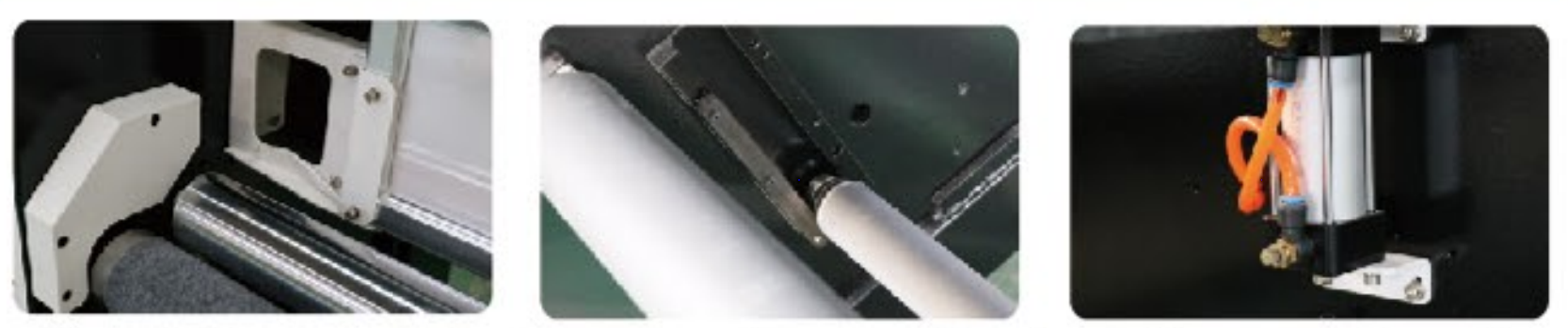

New soft film feeding system
Air-driven moisture system, pinch roller and soft film feeding system
Wide applications in light box, soft film, 3P fabric, scraping fabric, vinyl, light film, wallpaper, wall fabric, canvas, silk fabric, leather and etc.
| Model | HOLDWIN-3200UV Pro(V) | HOLDWIN-3200UV Pro(S) | HOLDWIN-3200UV Pro(Q) | |
| Print Head | 4 Print Heads | 5 Print Heads | 6 Print Heads | |
| Printing Technology | Piezoelectric Inkjet | |||
| Acceptable Media | Width | 210-3250 mm | ||
| Thickness | Maximum 1 mm | |||
| Diameter | Heavy-duty Media Feeding System has no limit for roll diameter of media Economic Media Feeding System is suitable for roll media diameter less than 210mm |
|||
| Weight | 100 kg | |||
| Printing Width | 210-3200 mm | |||
| Ink | Type | UV Ink | ||
| Capacity | Continual Ink Supply System(1.5L ink tank) | |||
| Color | W+CMYK+Vainish | CMYK/CMYK+W/CMYK+W+CMYK | CMYK | |
| Printing Resolution | 1200 dpi | |||
| Ink Curing Unit | Dual UVLED Lamps | |||
| Interface | LAN | |||
| Power Supply | AC 220V士10%,16A,50/60HZ | |||
| RIP | Riprint /Onyx(Caldera Optional) | |||
| Machine Size/Weight | 5410×1200×1570 mm / 1200 kg | |||
| Package Size /Weight | 5650×1130×1870 mm /1350 kg | |||
| Environment | Power on | Temperature:15℃ to 32℃/Humidity:35 to 80%(no condensation) | ||
| Power off | Temperature:5℃to 40℃/Humidity:20 to 80%(no condensation) | |||
| Accessories | USB cable,media clamp,manual,drain bottle,ink cartridges,RIP software,etc. | |||
Q&A
Q: What is the printing technology used in the HOLDWIN-3200UV Pro(V)?
A: The printing technology used in the HOLDWIN-3200UV Pro(V) is Piezoelectric Inkjet.
Q: How many print heads does the OR-3200UV Pro(S) have?
A: The OR-3200UV Pro(S) has 5 print heads.
Q: What is the maximum thickness of media that can be printed on using the HOLDWIN-3200UV Pro(V)?
A: The maximum thickness of media that can be printed on using the HOLDWIN-3200UV Pro(V) is Maximum 1 mm.
Q: What is the diameter limit for roll media in the HOLDWIN-3200UV Pro(Q)?
A: There is no limit for roll diameter of media in the HOLDWIN-3200UV Pro(Q).
Q: What type of ink is used in the HOLDWIN-3200UV Pro(S)?
A: The HOLDWIN-3200UV Pro(S) uses UV ink.
Q: What is the capacity of the ink tank in the HOLDWIN-3200UV Pro(Q)?
A: The capacity of the ink tank in the HOLDWIN-3200UV Pro(Q) is Continual Ink Supply System(1.5L ink tank).
Q: What color options are available for the ink in the HOLDWIN-3200UV Pro(V)?
A: The color options available for the ink in the HOLDWIN-3200UV Pro(V) are W+CMYK+Vainish.
Q: What is the printing resolution for all three models?
A: The printing resolution for all three models is 1200 dpi.
Q: What is the curing method for the ink in these printers?
A: The curing method for the ink in these printers is Dual UVLED Lamps.
Q: Which RIP software options are available for these printers?
A: The available RIP software options for these printers include Riprint and Onyx(Caldera Optional).
Q: What is the power supply requirement for these printers?
A: The power supply requirement for these printers is AC 220V±10%, 16A, 50/60HZ.
Q: What is the size and weight of the machine for the HOLDWIN-3200UV Pro(V)?
A: The machine size and weight for the HOLDWIN-3200UV Pro(V) is 5410x1200x1570 mm / 1200 kg.
Q: What is the package size and weight for the HOLDWIN-3200UV Pro(S)?
A: The package size and weight for the HOLDWIN-3200UV Pro(S) is 5650×1130×1870 mm / 1350 kg.
Q: What is the recommended operating environment for these printers?
A: The recommended operating environment for these printers is Temperature:15℃ to 32℃/Humidity:35 to 80% (no condensation).
Q: What is the recommended non-operating environment for these printers?
A: The recommended non-operating environment for these printers is Temperature:5℃ to 40℃/Humidity:20 to 80% (no condensation).
Q: What accessories come with these printers?
A: The accessories that come with these printers include USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc.
