Suitable for all kinds of knitted/woven fabrics
(Cotton,silk,wool,polyester,acetate,nylon,blended fabric,linen,etc)
Printing Process
FOUR KINDS OF INK, ACCORDING TO THE DIFFERENT FABRICS TO CHOOSE DIFFERENT INKS.
| Name | Scope ofapplication | Advantage |
| Reactive Ink | Suitable for cotton, rayon, silk and natural fibre fabrics | 1.Process shorten,goodeffect. 2.Personalized customization, no limited by color 3.Low pollution. |
| Disperse Ink | Disperse ink direct printing: Suitable for polyester fabrics. | 1.Good penetration,color, fastness migration. 2.Personalized customization, no imited by color. 3.Low pollution. |
| AcidInk | suitable for silk, wool,nylon etc. | Bright colors |
| Pigment Ink | use for any kinds fabric. | 1.Environmental,no need washing. 2.Printing process is simple. 3.Sample printingin minutes. 4.Can be used for all fabrics. |

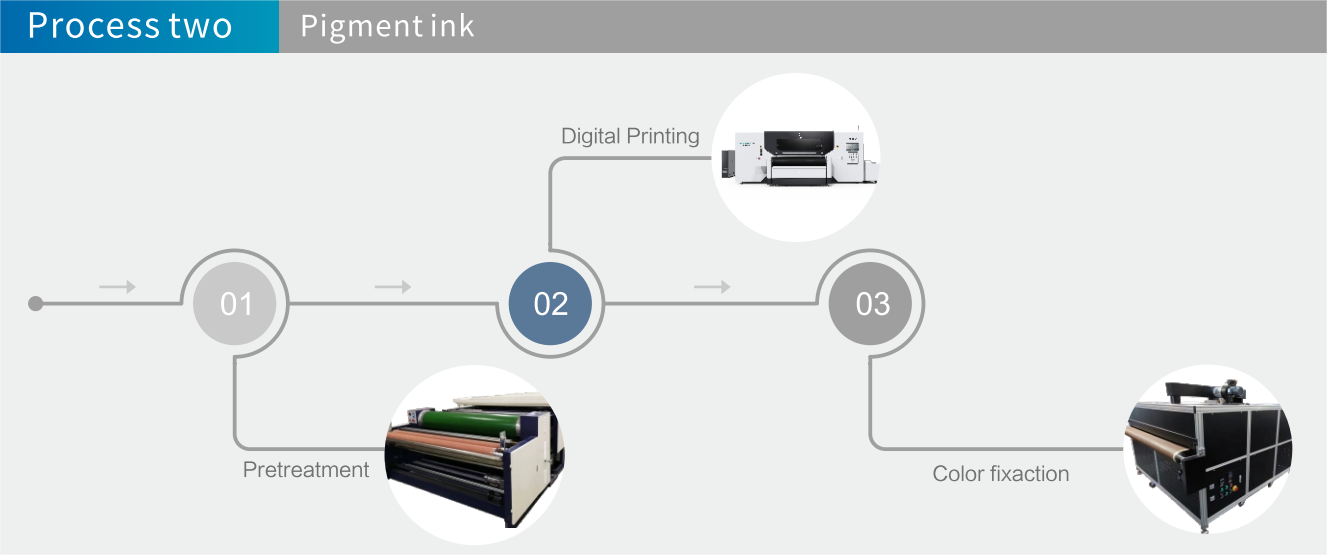

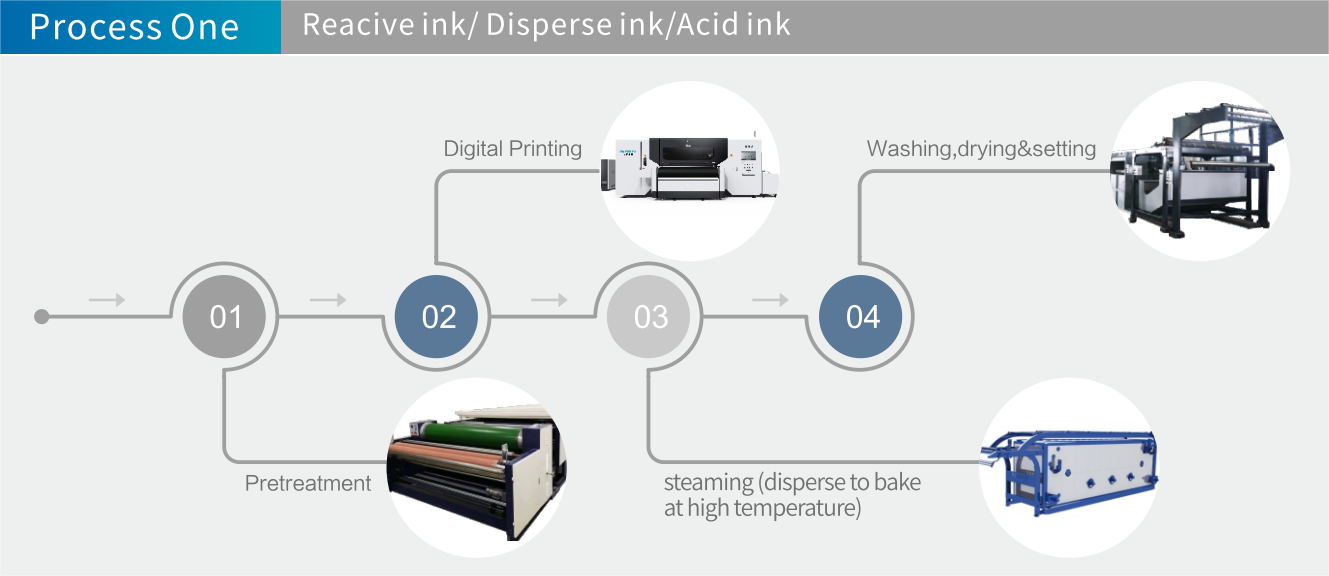

DIFEENT INK，THE PROCESSING IS DIFFERENT.THERE ARE TWO PROCESSING AS BLOWS
| Product mode | HOLDWIN-R1808/2208/2608 | ||
| Print head | Ricoh GEN5E/GEN6 | ||
| Fabric conveyance mode | Adhesive belt with cleaning and heating system | ||
| Effective print width | 1800/2200/2600mm | ||
| Maximum printing resolution | 2400DPI | ||
| Speed | Gen6 | 1 pass:300m²/h 2 pass:160m²/h |
|
| RIP software | Neostampa/Texprint | ||
| Printing partintroduction | Automatic negative pressure ink supply,automatic car lifting, automatic positive pressure cleaning,automatic moisturizing, sprinkler anti-collision system. |
||
| Main inktank | 10L | ||
| Belt system introduction | Automatic drying and winding system,automaticcleaning guide belt system,anti-pressure roller print,synchronous pressure roller. | ||
| Dryer unit | Single-layer tunnel oven (optional steam configuration) | ||
| Ink Type | reactive/disperse/acid/pigmentink | ||
| InterfacePower voltage | Optical fiber | ||
| Printhead height | Height adjustable 1.5-30mm,to adapt medium of different thickness | ||
| Power voltage | 380V,3L+N+G(with independent reliable effective earth wire) | ||
| Power frequency | 50HZ/60HZ ± 1HZ | ||
| Power Consumption | Printer:10kw; | ||
| Workshop Condition | Temperature:20-30℃,humidity:50-65% | ||

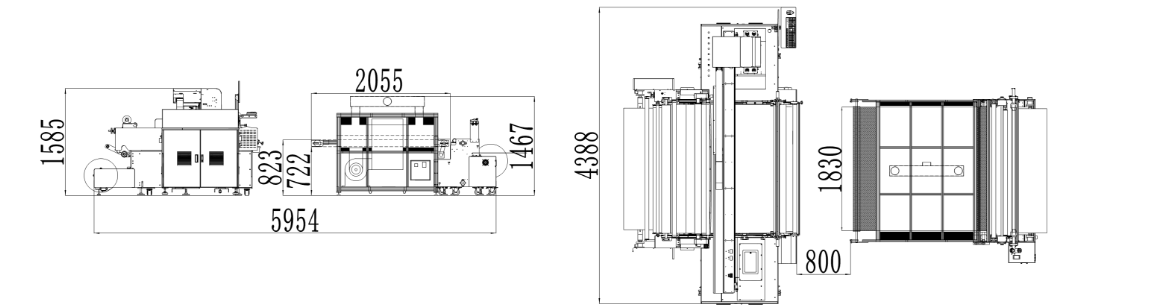

Effective width
| Size | 1800mm | 2200mm(Effective width2180mm) | 2600mm | |
| Printer | 4165mm*2200mm*1600mm(L*W*H) | 4615mm*2200mm*1700mm(L*W*H) | 5195mm*2200mm*1750mm(L*W*H) | |
| Dryer | 2055mm*2150mm*1467mm(L*W*H) | |||
| Ink Cabinet | Built-in | |||
| Weight | Printer: 2900Kg | Printer: 3750Kg | Printer: 4950Kg | |
Q&A
Q: What is the print head used in the HOLDWIN-R1808/2208/2608 printer?
A: The print head used in the HOLDWIN-R1808/2208/2608 printer is Ricoh GENE/GEN6.
Q: What is the effective print width of the HOLDWIN-R1808/2208/2608 printer?
A: The effective print width of the HOLDWIN-R1808/2208/2608 printer is 1800/2200/2600mm.
Q: What is the maximum printing resolution of the HOLDWIN-R1808/2208/2608 printer?
A: The maximum printing resolution of the HOLDWIN-R1808/2208/2608 printer is 2400DPI.
Q: What is the speed of the HOLDWIN-R1808/2208/2608 printer when using Gen6 printhead and running at 1 pass or 2 passes?
A: When using Gen6 printhead, the speed of the HOLDWIN-R1808/2208/2608 printer is 300m²/h for 1 pass and 160m²/h for 2 passes.
Q: What RIP software is used with the HOLDWIN-R1808/2208/2608 printer?
A: The RIP software used with the HOLDWIN-R1808/2208/2608 printer is Neostampa/Texprint.
Q: What ink types can be used with the HOLDWIN-R1808/2208/2608 printer?
A: The HOLDWIN-R1808/2208/2608 printer can use reactive, disperse, acid, and pigment ink.
Q: What is the main ink tank capacity of the HOLDWIN-R1808/2208/2608 printer?
A: The main ink tank capacity of the HOLDWIN-R1808/2208/2608 printer is 10L.
Q: What type of belt system is used in the HOLDWIN-R1808/2208/2608 printer?
A: The HOLDWIN-R1808/2208/2608 printer uses an adhesive belt with cleaning and heating system.
Q: Does the HOLDWIN-R1808/2208/2608 printer have an automatic drying and winding system?
A: Yes, the HOLDWIN-R1808/2208/2608 printer has an automatic drying and winding system.
Q: Is there an automatic positive pressure cleaning system in the HOLDWIN-R1808/2208/2608 printer?
A: Yes, the HOLDWIN-R1808/2208/2608 printer has an automatic positive pressure cleaning system.
Q: Does the HOLDWIN-R1808/2208/2608 printer have an anti-pressureroller print feature?
A: No, the HOLDWIN-R1808/2208/2608 printer does not have an anti-pressure roller print feature.
Q: What is the power voltage required for the HOLDWIN-R1808/2208/2608 printer?
A: The power voltage required for the HOLDWIN-R1808/2208/2608 printer is 380V, 3L+N+G (with independent reliable effective earth wire).
Q: What is the power frequency required for the HOLDWIN-R1808/2208/2608 printer?
A: The power frequency required for the HOLDWIN-R1808/2208/2608 printer is 50HZ/60HZ ± 1HZ.
Q: What is the power consumption of the HOLDWINW-R1808/2208/2608 printer?
A: The power consumption of the HOLDWIN-R1808/2208/2608 printer is 10kw.
Q: What is the recommended workshop condition for the HOLDWIN-R1808/2208/2608 printer?
A: The recommended workshop condition for the HOLDWIN-R1808/2208/2608 printer is temperature between 20-30°C and humidity between 50-65%.
