Suitable for all kinds of knitted/woven fabrics
(Cotton,silk,wool,polyester,acetate,nylon,blended fabric,linen,etc)
Printing Process
FOUR KINDS OF INK, ACCORDING TO THE DIFFERENT FABRICS TO CHOOSE DIFFERENT INKS.
| Name | Scope ofapplication | Advantage |
| Reactive Ink | Suitable for cotton, rayon, silk and natural fibre fabrics | 1.Process shorten,goodeffect. 2.Personalized customization, no limited by color 3.Low pollution. |
| Disperse Ink | Disperse ink direct printing: Suitable for polyester fabrics. | 1.Good penetration,color, fastness migration. 2.Personalized customization, no imited by color. 3.Low pollution. |
| AcidInk | suitable for silk, wool,nylon etc. | Bright colors |
| Pigment Ink | use for any kinds fabric. | 1.Environmental,no need washing. 2.Printing process is simple. 3.Sample printingin minutes. 4.Can be used for all fabrics. |
DIFEENT INK，THE PROCESSING IS DIFFERENT.THERE ARE TWO PROCESSING AS BLOWS

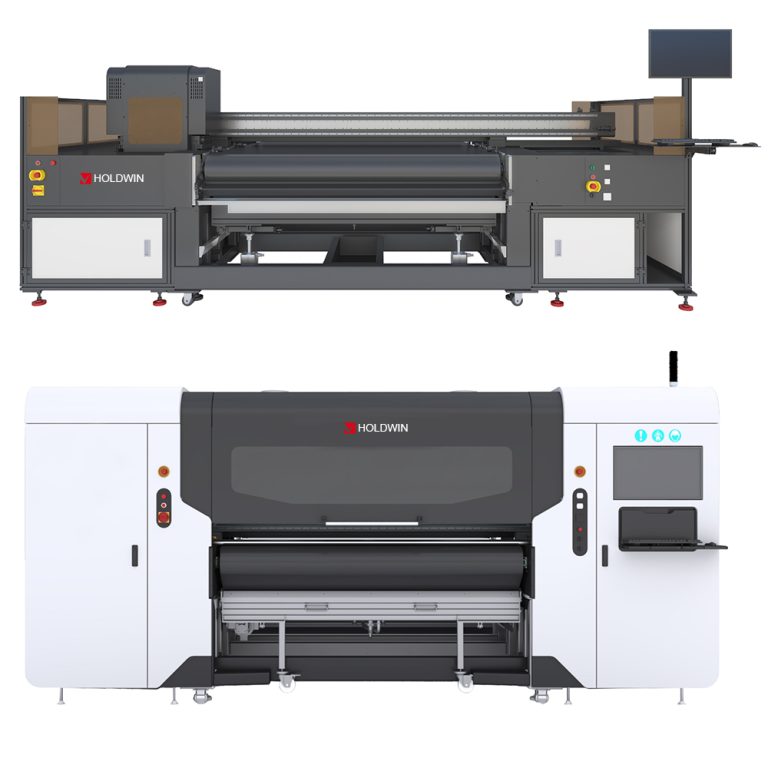

| Product mode | HOLDWIN-R1816/2216/2616 | |
| Print head | Ricoh GEN5E/GEN6 | |
| Fabric conveyance mode | Adhesive belt with cleaning andheatingsystem | |
| Effective print width | 1800/2200/2600mm | |
| Speed | Gen6 | 1 pass:540m²/h 2 pass:330m²/h |
| Maximum printing resoution | 2400 DPI | |
| Printingpartintroduction | automatic positive pressure cleaning,automatic moisturizing,sprinkler anti-collisionsystem. | |
| RIP software | Neostampa/Texprint | |
| Main ink tank | 10L | |
| Belt system introduction | Automatic drying and winding system,automaticcleaning guide belt system,anti-pressure roller print,synchronous pressure roller. | |
| Dryer unit | Single-layer tunnel oven(optional steam configuration) | |
| Ink Type | reactive/disperse/acid/pigmentink | |
| InterfacePower voltage | Optical fiber | |
| Print head height | Height adjustable 1.5-30mm,to adapt medium of different thickness | |
| Power voltage | 380V,3L+N+G(with independent reliableeffective earth wire) | |
| Power frequency | 50HZ/60HZ±1HZ | |
| Power Consumption | Printer 16KW, Oven 20KW(steam oven 4KW) | |
| Workshop Condition | Temperature:20-30℃,humidity:50-65% | |

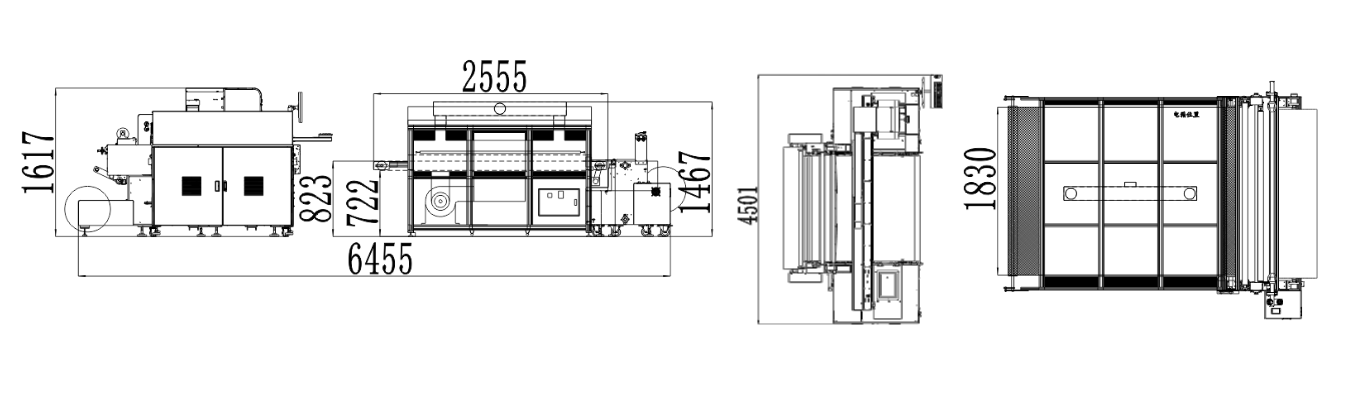

Effective width
| Size | 1800mm | 2200mm (Effective width2180mm) |
2600mm | |
| Printer | 4165mm*2200mm*1600mm (L*W*H) |
4615mm*2200mm*1700mm (L*W*H) |
5195mm*2200mm*1750mm (L*W*H) |
|
| Dryer | 2555mm*2150mm*1467mm(L*W*H); | |||
| Ink Cabinet | 1900mm*700mm*1000mm(L*W*H) | |||
| Weight | Printer:3100Kg; | Printer:3800Kg; | Printer:5000Kg; | |
Q&A
Q: What is the product mode of the printer?
A: The product mode of the printer is HOLDWIN-R1816/2216/2616.
Q: Which print heads are available for this printer?
A: The available print heads for this printer are Ricoh GEN5E and GEN6.
Q: How wide is the effective print width of the printer?
A: The effective print width of the printer ranges from 1800 to 2600 mm depending on the model.
Q: What is the maximum printing resolution of the printer?
A: The maximum printing resolution of the printer is 2400 DPI.
Q: What is the speed of the printer when using Gen6 printhead and running at 1 pass or 2 passes?
A: When using Gen6 printhead, the speed of the printer is 540 m²/h for 1 pass and 330 m²/h for 2 passes.
Q: What is the printing part introduction of the printer?
A: The printing part introduction includes automatic positive pressure cleaning, automatic moisturizing, and sprinkler anti-collision system.
Q: What RIP software is used with the printer?
A: The RIP software used with the printer is Neostampa/Texprint.
Q: What is the main ink tank capacity of the printer?
A: The main ink tank capacity of the printer is 10 L.
Q: What kind of belt system is used in the printer?
A: The printer uses an adhesive belt with cleaning and heating system.
Q: Does the printer have an automatic drying and winding system?
A: Yes, the printer has an automatic drying and winding system.
Q: What kind of dryer unit is used in the printer?
A: The dryer unit used in the printer is a single-layer tunnel oven with optional steam configuration.
Q: What ink types can be used with the printer?
A: The printer can use reactive, disperse, acid, and pigment ink.
Q: What is the interface power voltage of the printer?
A: The interface power voltage of the printer is optical fiber.
Q: Can the print head height be adjusted in the printer?
A: Yes, the print head height is adjustable by 1.5-30 mm to adapt to different thicknesses of medium.
Q: What is the power voltage required for the printer?
A: The power voltage required for the printer is 380 V, 3 L + N + G with independent reliable effective earth wire.
Q: What is the power frequency required for the printer?
A: The power frequency required for the printer is 50 HZ / 60 HZ ± 1 HZ.
Q: What is the power consumption of the printer?
A: The power consumption of the printer is 16 kW for the printer itself and 20 kW for the oven (steam oven requires 4 kW).
Q: What is the recommended workshop condition for the printer?
A: The recommended workshop condition for the printer is a temperature range of 20-30°C and humidity range of 50-65%.
