Suitable for all kinds of knitted/woven fabrics
(Cotton,silk,wool,polyester,acetate,nylon,blended fabric,linen,etc)
Printing Process
FOUR KINDS OF INK, ACCORDING TO THE DIFFERENT FABRICS TO CHOOSE DIFFERENT INKS.
| Name | Scope ofapplication | Advantage |
| Reactive Ink | Suitable for cotton, rayon, silk and natural fibre fabrics | 1.Process shorten,goodeffect. 2.Personalized customization, no limited by color 3.Low pollution. |
| Disperse Ink | Disperse ink direct printing: Suitable for polyester fabrics. | 1.Good penetration,color, fastness migration. 2.Personalized customization, no imited by color. 3.Low pollution. |
| AcidInk | suitable for silk, wool,nylon etc. | Bright colors |
| Pigment Ink | use for any kinds fabric. | 1.Environmental,no need washing. 2.Printing process is simple. 3.Sample printingin minutes. 4.Can be used for all fabrics. |
DIFEENT INK，THE PROCESSING IS DIFFERENT.THERE ARE TWO PROCESSING AS BLOWS

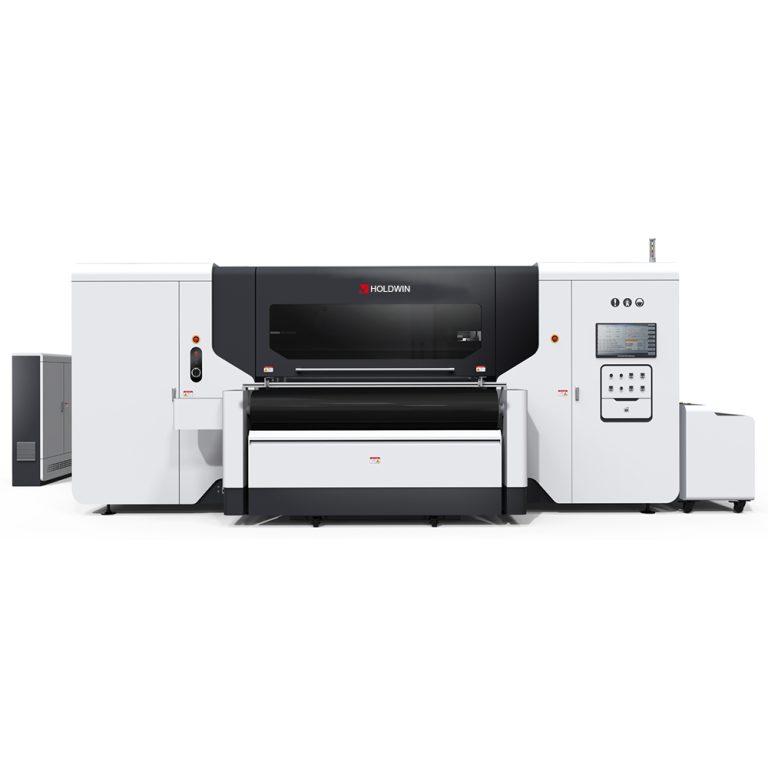

| Product mode | HOLDWIN-R1832/2232/2632 | |
| Print head | Ricoh GEN5E/GEN6 | |
| Fabric conveyance mode | Adhesive belt with cleaning and heating system | |
| MaximumPrint width | 1900/2200/2600mm | |
| Speed | Gen6 | 1 pass:1300m²/h 2 pass:650m²/h |
| Maximum printing resoution | 2400 DPI | |
| RIP software | Neostampa/Texprint(origin) | |
| Printing partintroduction | Automatic negative pressure inksupply, automatic carlifting, automatic positive pressure cleaning,automatic moisturizing, sprinkler anti-collision system. | |
| Main ink tank | 15L | |
| Belt system introduction | Automatic drying and winding system,automatic cleaningguide belt system,anti-pressure rollerprint,synchronous pressure roller | |
| Dryer unit | 3 tiers industry dryer with off plane | |
| Ink Type | reactive/disperse/acid/pigmentink | |
| InterfacePower voltage | Optical fiber | |
| Print head height | Height adjustable 1.5-30mm,to adapt medium of different thickness | |
| Power voltage | 380V,3L+N+G(with independent reliable effective earth wire) | |
| Power frequency | 50HZ/60HZ±1HZ | |
| Power Consumption | Printer:40kw; oven:6KW | |
| Workshop Condition | Temperature:20-30℃,humidity:50-65% | |

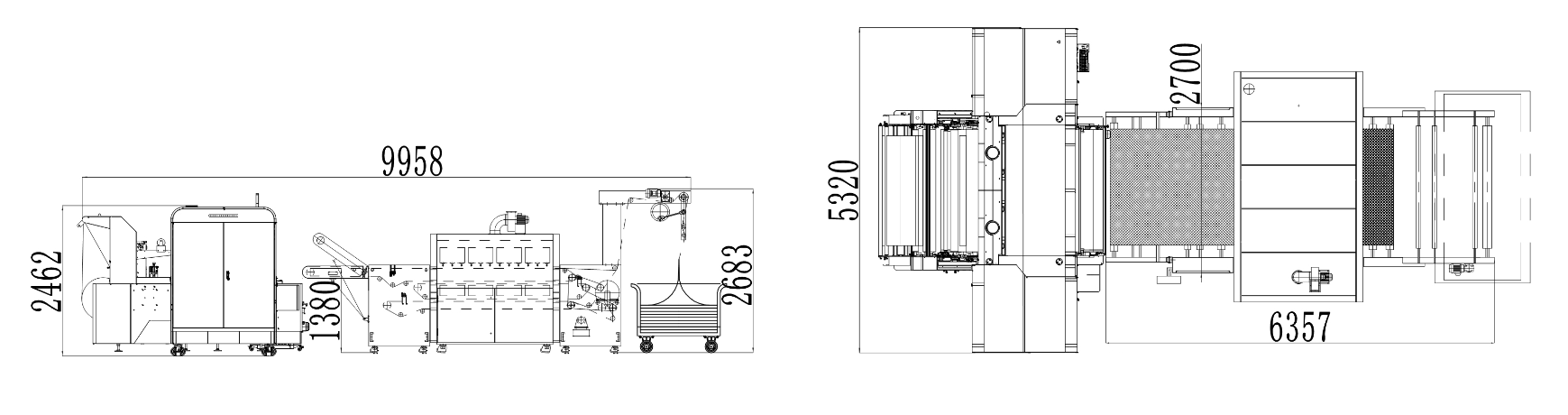

Effective width
| Size | 1900mm | 2200mm | 2600mm | |
| Printer | 5300mm*3450mm*2220mm(L*W*H) | 5700mm*3450mm*2220mm(L*W*H) | 6100mm*3450mm*2220mm(L*W*H) | |
| Dryer | 6400mm*3800mm*2700mm(L*W*H) | 6800mm*3800mm*2700mm(L*W*H) | 7200mm*3800mm*2700mm(L*W*H) | |
| Ink Cabinet | 1760mm*700mm*995mm(L*W*H) | |||
| Weight | Printer:6200Kg; The bakery:5000kg; |
Printer:8000Kg; | Printer:10000Kg; | |
Q&A
Q: What is the product model of this printer?
A: The product mode is HOLDWIN-R1832/2232/2632.
Q: Which print head does it use?
A: It uses Ricoh GEN5E/GEN6 print heads.
Q: How does the fabric conveyance work in this machine?
A: Fabric conveyance is done through an adhesive belt with cleaning and heating system.
Q: What is the maximum print width for each pass?
A: The maximum print width is 1900/2200/2600mm.
Q: What is the speed of printing on Gen6?
A: On Gen6, the speed is 1300m²/h for one pass and 650m²/h for two passes.
Q: What software is used for RIP?
A: Neostampa/Texprint is used for RIP.
Q: What is the main ink tank capacity?
A: The main ink tank has a capacity of 15L.
Q: Does the machine have an automatic drying and winding system?
A: Yes, the machine has an automatic drying and winding system.
Q: How many tiers does the industry dryer have?
A: The dryer unit has three tiers with off-plane drying.
Q: What types of ink can be used in this printer?
A: Reactive/dispersive acid/pigment ink can be used.
Q: Is there any optical fiber interface available?
A: Yes, there is an optical fiber interface available.
Q: Can the print head height be adjusted?
A: Yes, the print head height is adjustable from 1.5-30mm to adapt to medium thickness fabrics.
Q: What is the power voltage required for this machine?
A: The power voltage required is 380V, 3L+N+G (with independent reliable effective earth wire).
Q: What is the frequency and hertz needed for operation?
A: The frequency and hertz needed are 50HZ/60HZ±1HZ.
Q: What is the power consumption of the printer and oven?
A: The power consumption of the printer is 40kw and the oven is 6KW.
Q: What are the workshop conditions required for operation?
A: The temperature should be between 20-30°C and humidity should be between 50-65%.
