PRODUCT

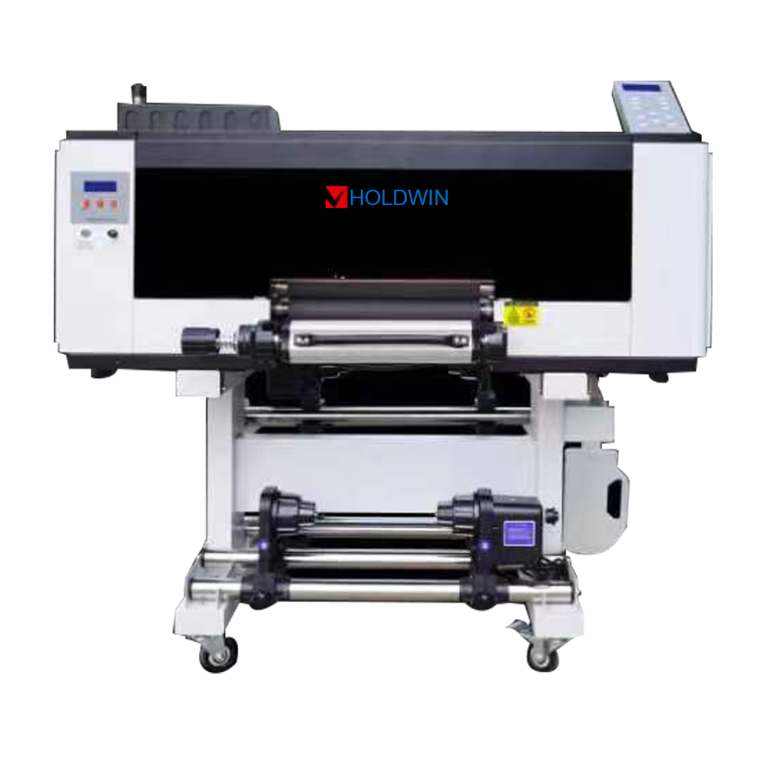

HOLDWIN-UV3003

  • Print Head: EPSON i3200-U1 / F1080 ×3
  • Max Print Width: ≤300(mm)
  • Printing Speed: 4pass :3m²/h

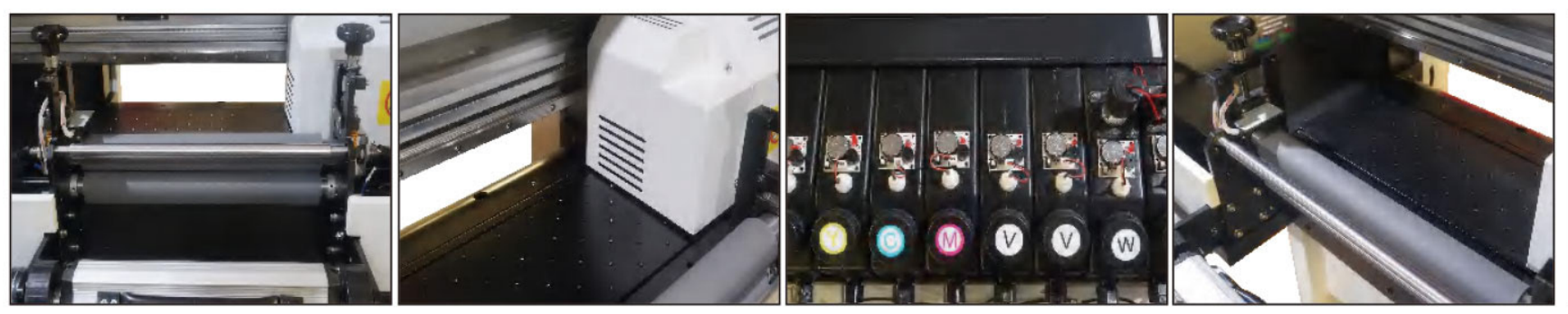

PRODUCT DETAILS

  • 3 heads model white color varnish
  • High precision printing platform
  • High quality motor
  • Double side resistance adjust

Applications

  • Leather Products
  • Woodwork
  • Metal Products
  • Glassware

Technical Parameters

Printer Mode HOLDWIN-3003
Rip Software MainTop/PhotoPrint
Print Width 300mm
Supply voltage AC220V
Print Head EPSON i3200-U1 / F1080 three head
Power 1.2KW
Working enwionment Temperature:15-30℃  Humidity:40-60%
Equipment size 1200mmx500mmx1166mm
Equipment weight 100KG
Packaging size 1525mmx725mmx755mm



Q&A

Q: What is the brand of the printer?
A: HOLDWIN

Q: What is the model number of the printer?
A: HOLDWIN-3003

Q: What Rip Software is compatible with the HOLDWIN-3003 printer?
A: MainTop/PhotoPrint

Q: What is the print width of the HOLDWIN-3003 printer?
A: 300mm

Q: What is the supply voltage for the HOLDWIN-3003 printer?
A: AC220V

Q: How many print heads does the HOLDWIN-3003 printer have and what type are they?
A: It has three Epson F1080 print heads.

Q: What is the power consumption of the HOLDWIN-3003 printer?
A: 1.2KW

Q: What is the working environment temperature range for the HOLDWIN-3003 printer?
A: 15-30°C

Q: What is the humidity range suitable for the HOLDWIN-3003 printer?
A: 40-60%

Q: What are the equipment dimensions of the HOLDWIN-3003 printer?
A: 1200mm x 500mm x 1166mm

Q: What is the equipment weight of the HOLDWIN-3003 printer?
A: 100KG

Q: What is the packaging size of the HOLDWIN-3003 printer?
A: 1525mm x 725mm x 755mm
